Description

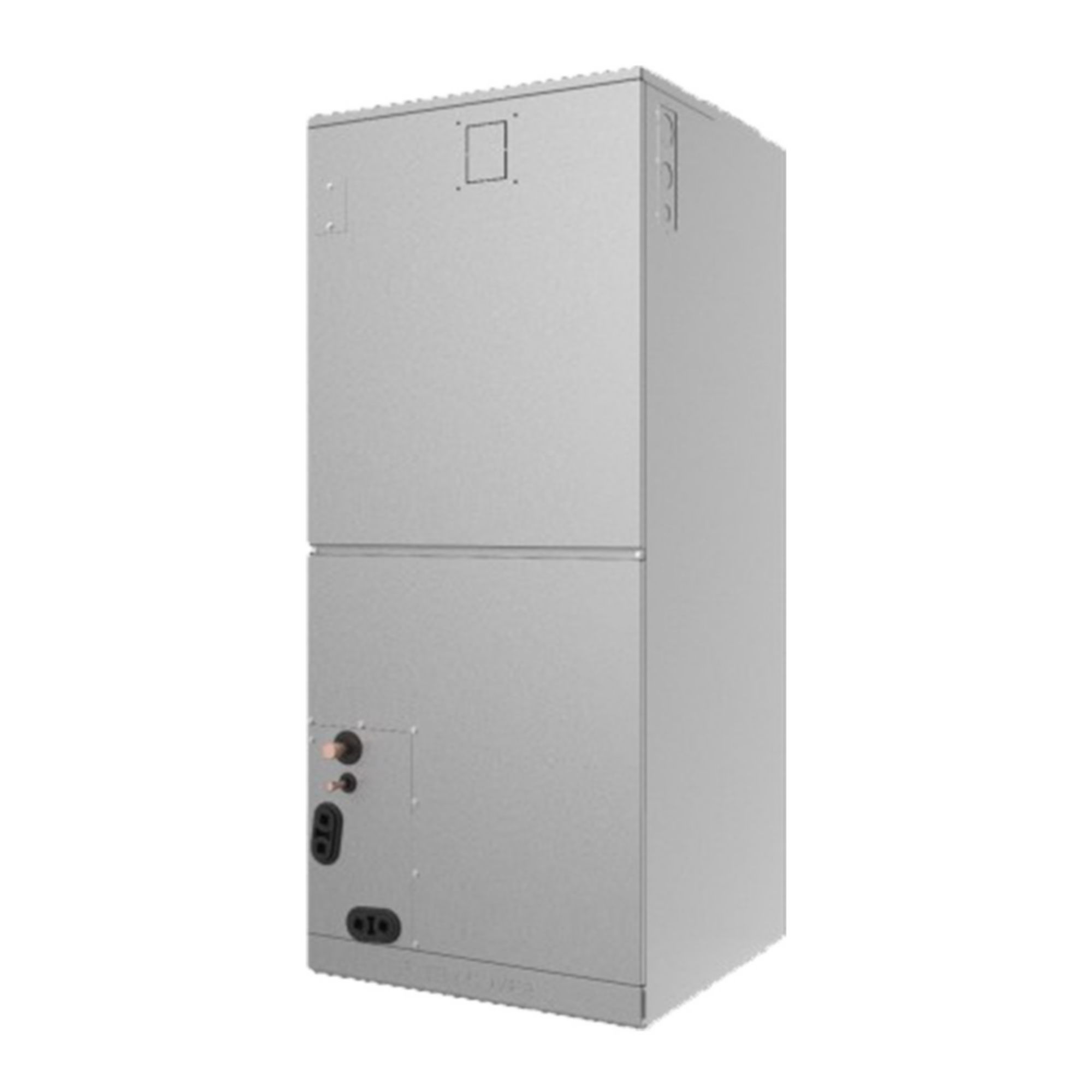

45MBAAQ36XB3 3 Ton Heat Pump Ductless System Fan Unit R-454B – E:Mail: sales@walkair.us to confirm availability or for volume discounts
45MBAAQ36XB3
4 = Indoor Unit / Product
5 = Puron Advance (R-454B) / Refrigerant
MB = Model Type
A = Air Handler / Indoor Type
A = Major Series
Q = Heat Pump / Unit Type
36 = 36000 / Nominal Capacity
X = 0 / # of Indoor Units
B = Variation
3 = 208/230-1-60
| Attributes | |
|---|---|
| Air Flow Direction | Multi-Position |
| Approvals | ETL Listed; UL Listed |
| Blower Motor HP | 1/2 |
| Blower Motor RPM | 560-685 |
| Blower Motor Speeds | 3 (Three) |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Wheel Diameter | 11 1/10″ |
| Blower Wheel Width | 9 3/5″ |
| Brand | Bryant®, Payne®, Carrier® |
| CFM | 865-1,188 |
| CFM Heating | 582-1,112 |
| Cabinet Width | 21.02 |
| Color | Gray |
| Cooling Capacity | 36,000 |
| Cooling Rated Capacity (Btu/h) | 36000 |
| Country of Origin | CHN |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| Electric Heat Range [kW] | 5-25 |
| Energy Star Rated | Yes |
| Includes Filter Rack | No |
| Liquid Line Fitting Type | Flare |
| Maximum Overcurrent Protection (MOCP) | 15 |
| Mounting Type | Ducted Multi-Position |
| Multi Zone | Yes |
| OPT Code | 1P45MBAAQ36XB3 |
| Phase | Single |
| Product Family | 45MBAA |
| Prop 65 | Yes |
| Refrigerant | R-454B |
| Suction Line Fitting Type | Flare |
| Tonnage | 3 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
