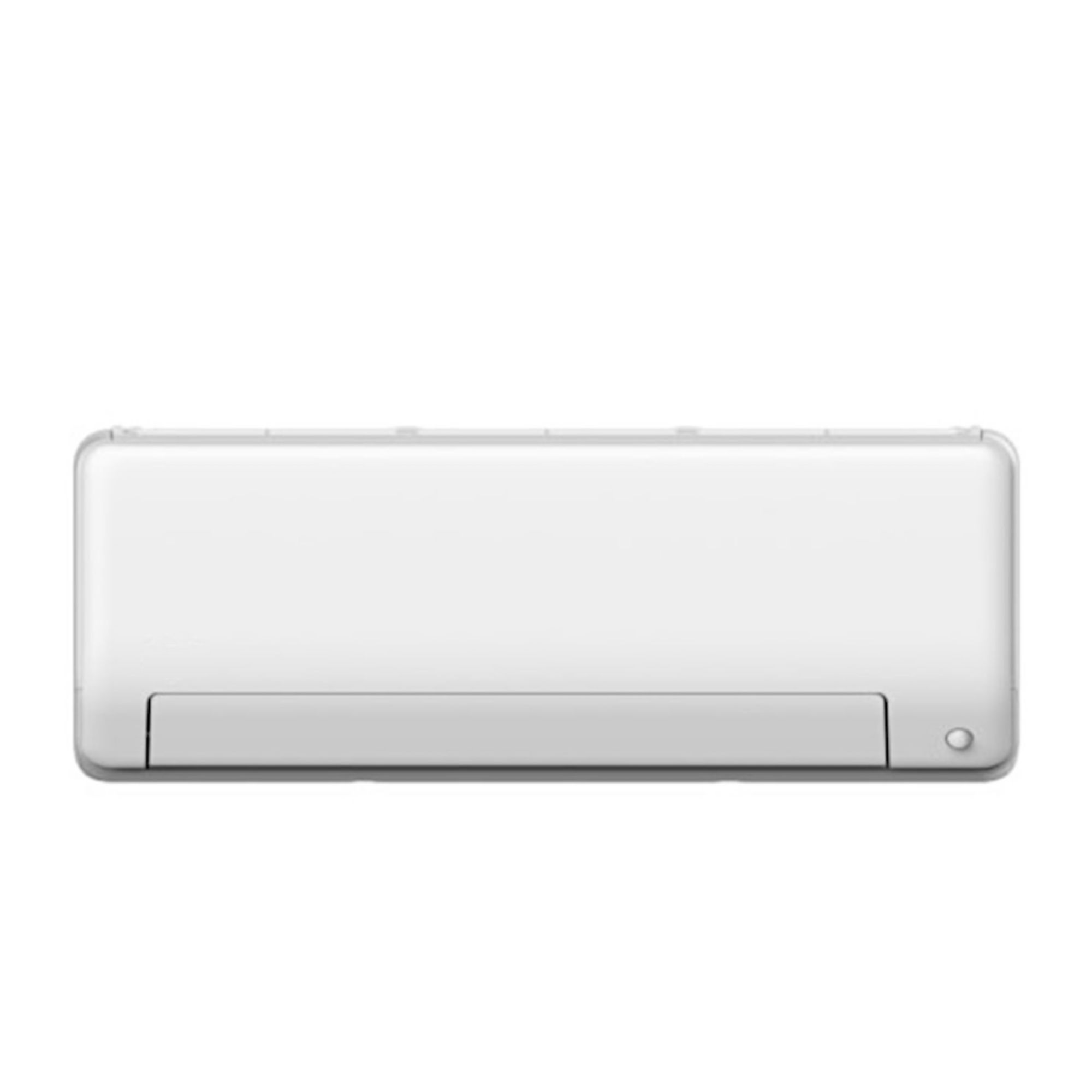

45MAHAQ24XA3 Ductless 24000 Btuh Heat Pump High Wall Unit R-454B (208/230-1) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
45MAHAQ24XA3
4 = Indoor Unit / Product
5 = Puron Advance R-454B / Refrigerant
MA = Model Type
H = Air Handler / Indoor Type
Q = Heat Pump / Unit Type
24 = 24000 / Nominal Capacity
X = Variation
3 = 208/230-1-60 / Electrical
| Attributes | |
|---|---|
| Approvals | ETL Listed; UL Listed |
| Blower Motor HP | 3/50 |
| Blower Motor RPM | 1,000 |
| Blower Motor Speeds | 4 |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Motor Watts | 25-102 |
| Blower Wheel Diameter | 4 4/5 |
| Blower Wheel Width | 34 4/5 |
| Brand | Carrier®, Bryant® |
| CFM | 317.8-812.3 |
| CFM Heating | 318.82-618 |
| COP | 2.3 |
| Color | White |
| Cooling Capacity | 24,000 |
| Cooling Rated Capacity (Btu/h) | 24000 |
| Country of Origin | CHN |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 5/8″ |
| EER2 | 12.5 |
| Energy Star Rated | YES |
| Evaporator Coil Fins per Inch (FPI) | 20 |
| HSPF2 | 10 |
| Heating Capacity | 24,000-32,200 |
| Liquid Line Fitting Type | Flare |
| Liquid Line Size (OD) | 3/8″ |
| Metering Device | EEV – Electronic Expansion Valve |
| Mounting Type | Wall-Mount |
| Multi Zone | YES |
| OPT Code | 1P45MAHAQ24XA3 |
| Phase | Single |
| Product Family | 45MAHA |
| Prop 65 | YES |
| Refrigerant | R-454B |
| Remote Control Included | YES |
| SEER2 | 24-26 |
| Sound Level (dBA) | 16-54.5 |
| Stages Cooling | Variable |
| Stages Heating | Variable |
| Suction Line Fitting Type | Flare |
| Suction Line Size (OD) | 5/8″ |
| Tier | Performance™ |
| Tonnage | 2 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
