Description

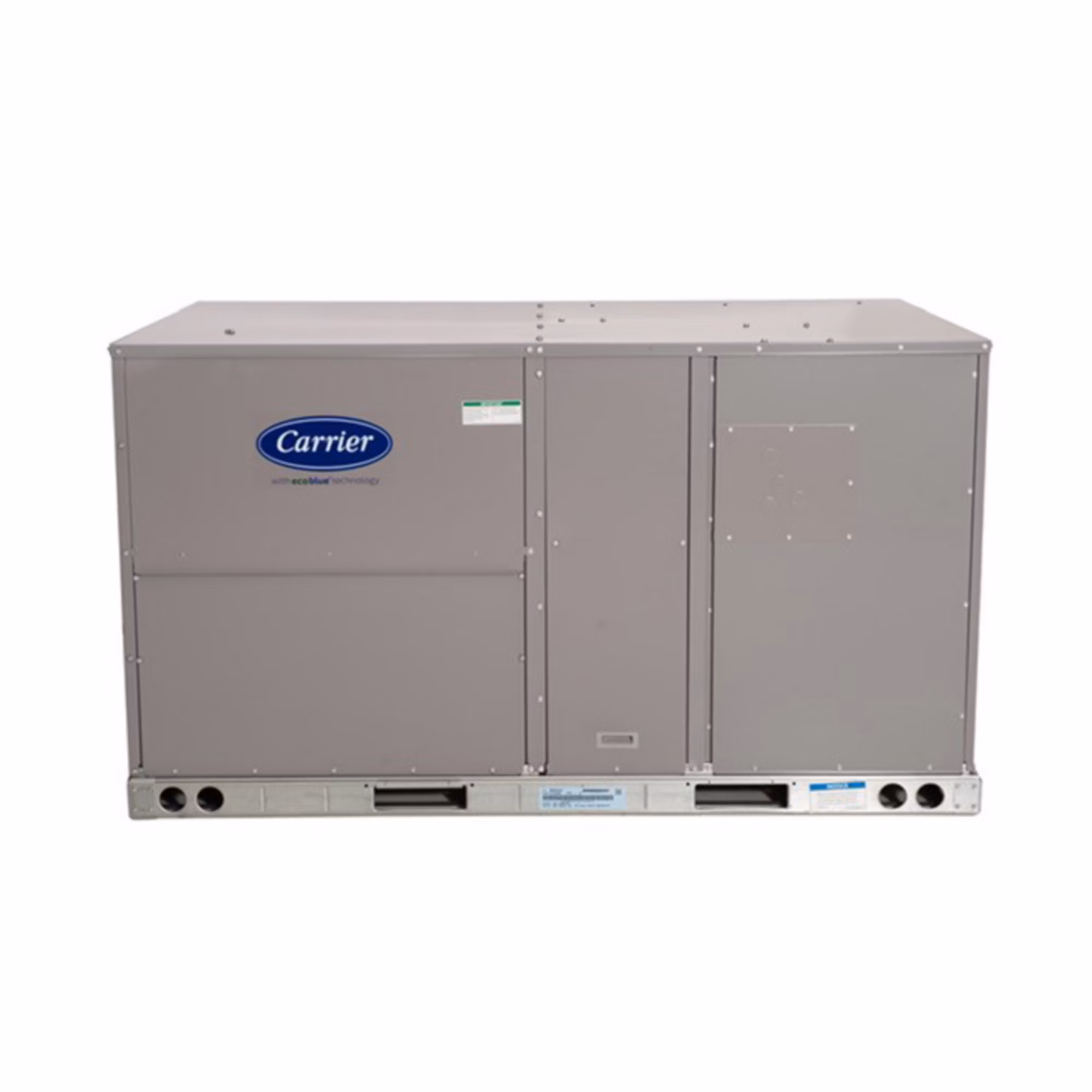

40QQ-060ABA3-0A0 5 Ton No Heat VRF Rooftop R-410A 208/230-1-60 – E:Mail: sales@walkair.us to confirm availability or for volume discounts
40QQ-060ABA3-0A0
40 = Indoor Unit – Equipment Type
QQ = Rooftop – Product Type
– = No Heat – Heat Type
060 = 60,000 – Capacity (Btuh)
A = Standard – Sensor
B = Vane Axial Fan – Fan
3 = 208/230-1-60 – Voltage
– = Current – Design Revision
0 = Standard – Packaging
A = Not Used – Feature Use
0 = Not Used – Feature Use
STANDARD FEATURES
- Vane Axial Fan (VAF) Technology
- Three Fan Speeds – High, Medium and Low
- Electronically Commutated Fan Motor (ECM)
- Built In Pulse Modulating Valve For Installation Ease
- Built-In Mounting Bracket for FS Box Installation (for Heat Recovery)
- Horizontal and Vertical Economizer Option
- 14” or 24” Roof Curb Option
- Electric Heat Option
| Attributes | |
|---|---|
| Approvals | UL Listed |
| Blower Motor HP | 1 23/50 BHP |
| Blower Motor RPM | 2,390 |
| Blower Motor Speeds | Multiple |
| Brand | Carrier® |
| Color | Gray |
| Cooling Capacity | 60,000 |
| Country of Origin | USA |
| Cubic Measurement | 83.031 |
| Cycle/Hertz | 60 Hz |
| Energy Star Rated | NO |
| Evaporator Coil Fins per Inch (FPI) | 15 |
| Heating Capacity | 66,000 |
| Liquid Line Size (OD) | 3/8″ |
| Maximum Overcurrent Protection (MOCP) | 80 |
| OPT Code | 1P40QQ-060ABA3-0A0 |
| Phase | Single |
| Product Family | 40QQ |
| Prop 65 | YES |
| Refrigerant | R-410A |
| Sound Level (dBA) | 66-77 |
| Suction Line Size (OD) | 5/8″ |
| Tonnage | 5 |
| Voltage | 208-230 VAC |
