Description

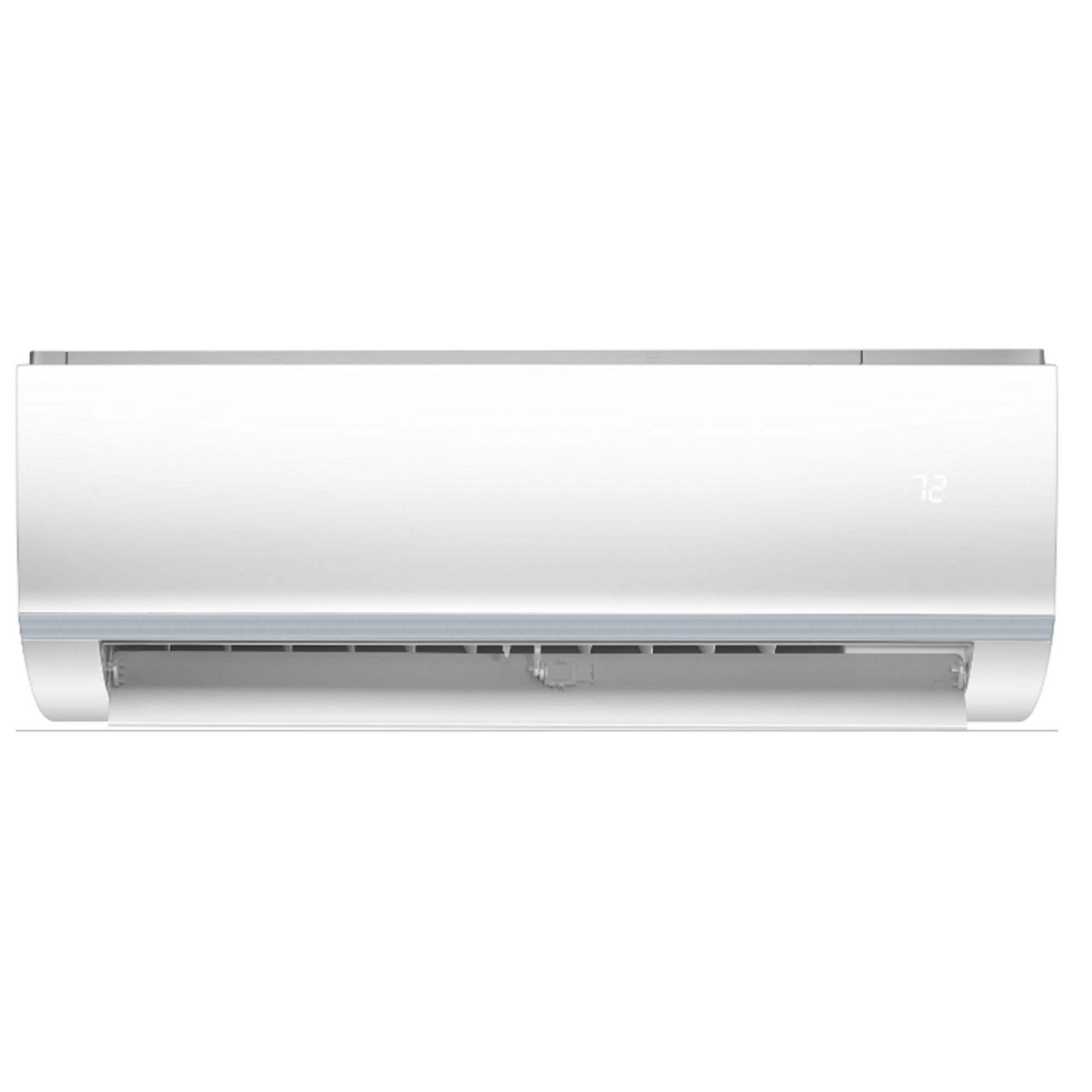

40MHHAQ18XA3 Ductless 18000 BTUH High Wall Indoor Unit Heat Pump R-410A 208/230-1-60 – E:Mail: sales@walkair.us to confirm availability or for volume discounts
40MHHAQ18XA3
40 = INDOOR UNIT
MH = MODEL
H = HIGH WALL / SYSTEM TYPE
A = MAJOR SERIES
Q = HEAT PUMP / INDOOR FAN COIL TYPE
18 = 1.5 TON / NOMINAL CAPACITY
X = INDOOR UNIT
A = STANDARD / VARIATIONS
3 = 208/230-1-60 / VOLTAGE
STANDARD FEATURES:
- Available in 208/230V (9-36K)
- Available in 115V (9K-12K)
- Modes: Cool, Heat, Dry, Fan, Auto
- Turbo Mode
- Fully Modulating fan speeds
- Up-Down / Right-Left Louver control (fixed or swing)
- ECO Mode
- Heating Setback (46° F Heating Mode)
- Anti-corrosive fin coatings
CONTROLS:
- Wireless Remote Controller included with indoor unit
| Attributes | |
|---|---|
| Approvals | ETL Listed; UL Listed |
| Blower Motor HP | 1/25 |
| Blower Motor RPM | 1,200 |
| Blower Motor Speeds | 4 |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Motor Watts | 30-36 |
| Blower Wheel Diameter | 337 |
| Blower Wheel Width | 1082 |
| Brand | Carrier®, Bryant®, Payne® |
| CFM | 271-550 |
| CFM Heating | 271-550 |
| Color | White |
| Cooling Capacity | 18,000 |
| Cooling Rated Capacity (Btu/h) | 18000 |
| Country of Origin | CHN |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 5/8″ |
| Energy Star Rated | NO |
| Evaporator Coil Fins per Inch (FPI) | 21 |
| Heating Capacity | 18,000 |
| Liquid Line Fitting Type | Flare |
| Liquid Line Size (OD) | 1/4″ |
| Metering Device | EEV – Electronic Expansion Valve |
| Mounting Type | Wall-Mount |
| Multi Zone | YES |
| OPT Code | 1P40MHHAQ18XA3 |
| Phase | Single |
| Product Family | 40MHHAQ |
| Prop 65 | YES |
| Refrigerant | R-410A |
| Remote Control Included | YES |
| SEER | 19-23 |
| Sound Level (dBA) | 31-49 |
| Suction Line Fitting Type | Flare |
| Suction Line Size (OD) | 1/2″ |
| Tier | Standard |
| Tonnage | 1.5 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
