Description

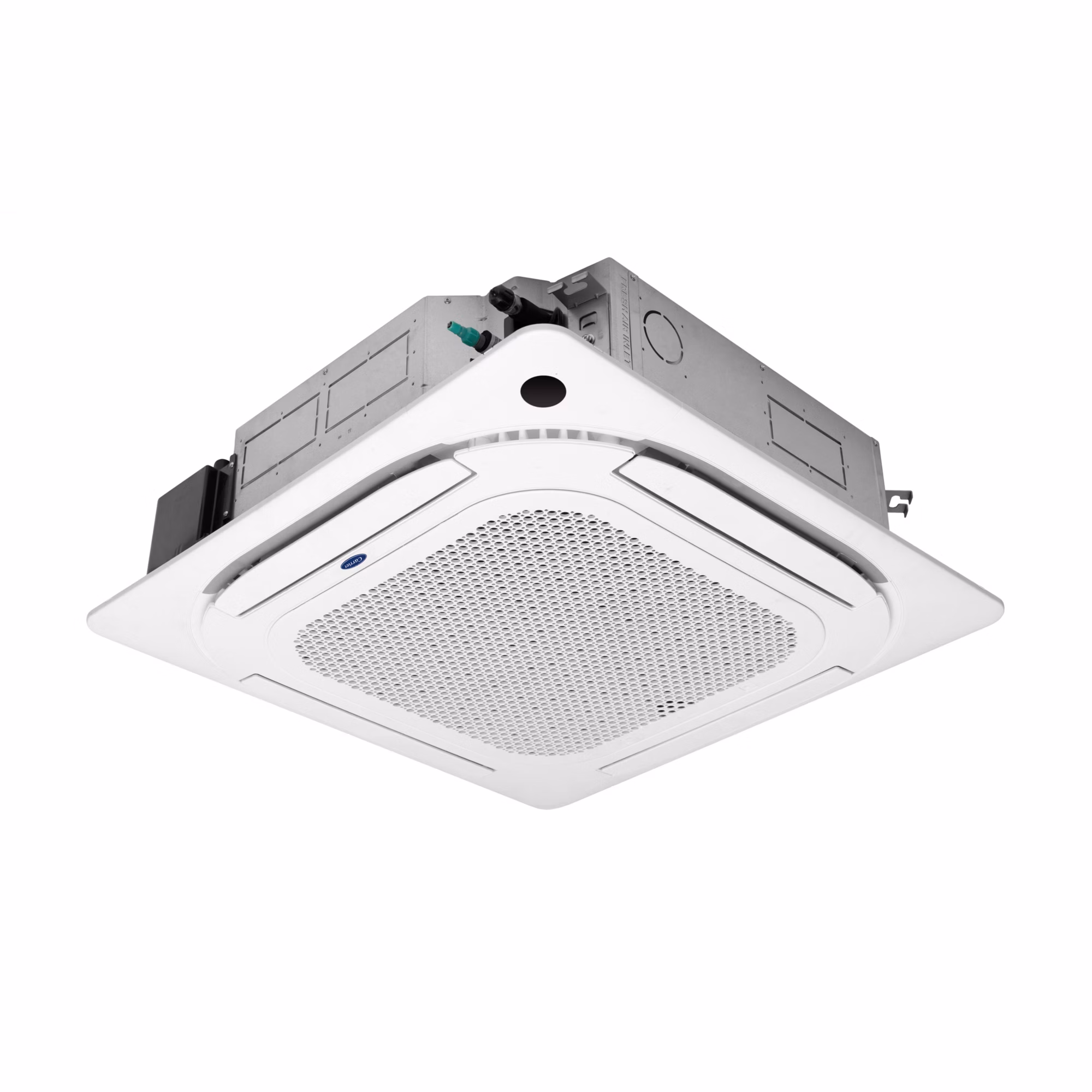

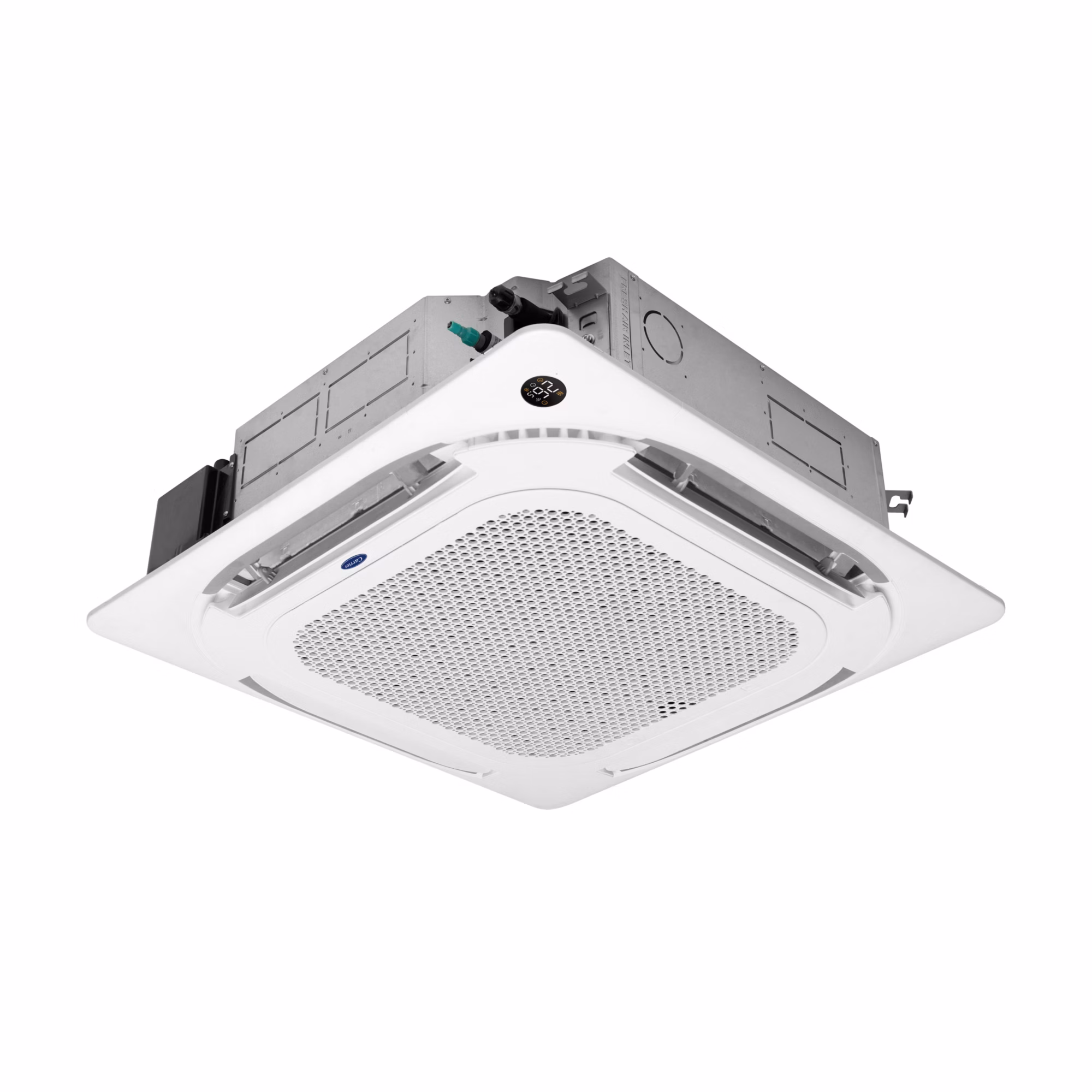

40MBCAQ48XA3 Carrier – 48000 Btuh Ductless Cassette R-410A (grille sold separately) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
40MBCAQ48XA3
40 = Fan Coil Unit
MB = Model
C = Cassette / Indoor Fan Coil Type
A = Major Series
Q = Heat Pump / System Type
48 = 4 Tons / Nominal Capacity
X = Indoor Unit
A = Standard / Variation
3 = 208/230-1-60 / Voltage
The 40MBCAQ ductless series systems are a matched combination of an outdoor condensing unit and an indoor fan coil unit connected only by refrigerant tubing and wires.
The in-ceiling cassette fan coils are ideal for retrofit or modernization projects where a false ceiling is available. This selection of fan coils permits inexpensive and creative solutions to design problems such as:
- Add-ons to current space (an office or family room addition)
- Special space requirements
- When changes in the load cannot be handled by the existing system
- When adding air conditioning to spaces that are heated by hydronic or electric heat and have no ductwork
- Historical re
| Attributes | |
|---|---|
| Blower Motor HP | 1/6 |
| Blower Motor RPM | 850 |
| Blower Motor Speeds | 4 |
| Blower Motor Type | PSC (Permanent Split Capacitor) |
| Blower Motor Watts | 240-248 |
| Blower Wheel Diameter | 18 37/50 |
| Blower Wheel Width | 18 37/50 |
| Brand | Carrier®, Bryant® |
| CFM | 935-1,288 |
| CFM Heating | 935-1,288 |
| Color | White |
| Cooling Capacity | 48,000 |
| Cooling Rated Capacity (Btu/h) | 48000 |
| Country of Origin | CHN |
| Cubic Measurement | 6.9839 |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| Energy Star Rated | NO |
| Evaporator Coil Fins per Inch (FPI) | 20 |
| Heating Capacity | 11,850-52,000 |
| Liquid Line Fitting Type | Flare |
| Liquid Line Size (OD) | 3/8″ |
| Metering Device | EEV – Electronic Expansion Valve |
| Mounting Type | Ceiling Cassette |
| Multi Zone | NO |
| Number of HVAC Zones | 1 |
| OPT Code | 1P40MBCAQ48XA3 |
| Phase | Single |
| Product Family | 40MBCAQ |
| Prop 65 | YES |
| Refrigerant | R-410A |
| Remote Control Included | YES |
| Sound Level (dBA) | 49-56 |
| Stages Cooling | 1 |
| Stages Heating | 1 |
| Suction Line Fitting Type | Flare |
| Suction Line Size (OD) | 5/8″ |
| Tier | Standard |
| Tonnage | 4 |
| Voltage | 208-230 VAC |
