40MBABQ36XB3 3 Ton Heat Pump Ductless System Fan Coil Unit R-410A – E:Mail: sales@walkair.us to confirm availability or for volume discounts

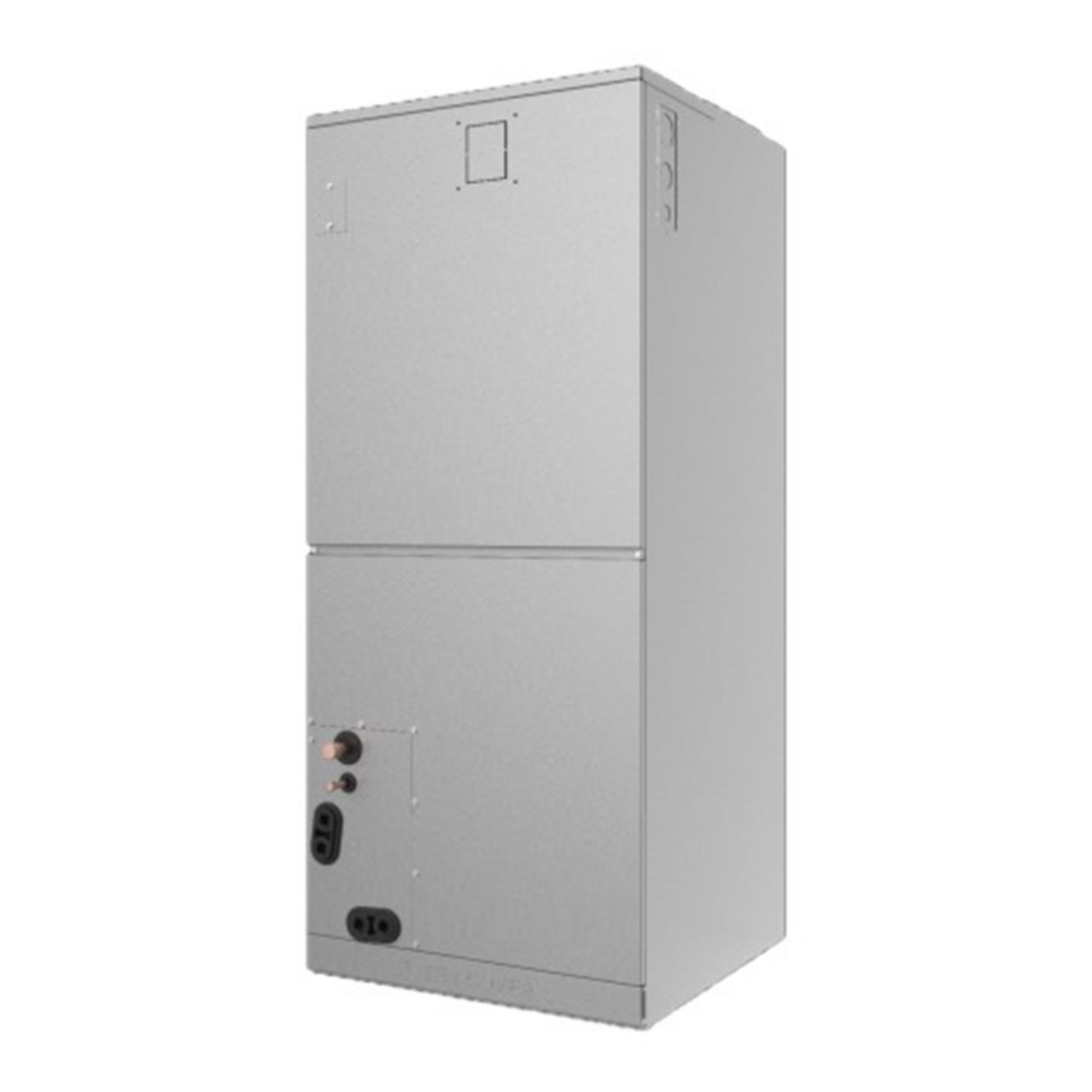

3 Ton Heat Pump Ductless System Fan Coil Unit
STANDARD FEATURES
- Modes: Cool, Heat, Dry, Fan, Auto
- 4 way installation (Up flow, Down flow, Right, Left)
- New Aluminum Coil
- Automatic Airflow Technology with Static Pressure up to 0.8 inWG
- Less than 2% air leakage
- Easy Maintenace
- Quiet indoor operation
- Aluminum Hydrophilic pre-coated fins
Controls:
- Wireless Remote Controller included with indoor unit
- 24V Interface for third party thermostat compatibility built-in
LIMITED WARRANTY*
- 10 year limited to original purchaser on compressor and parts upon timely registration, otherwise 5 years
*For residential applications. See warranty for full details.
| Attributes | |
|---|---|
| Approvals | ETL Listed |
| Blower Motor HP | 1/2 |
| Blower Motor RPM | 685 |
| Blower Motor Speeds | 4 |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Wheel Diameter | 11 1/10″ |
| Blower Wheel Width | 9 13/20 |
| Brand | Carrier®, Bryant®, Payne® |
| CFM | 865-1,188 |
| CFM Heating | 1,188 |
| Color | Gray |
| Cooling Capacity | 36,000 |
| Cooling Rated Capacity (Btu/h) | 36000 |
| Country of Origin | CHN |
| Cubic Measurement | 9.5703 |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| Energy Star Rated | NO |
| Evaporator Coil Fins per Inch (FPI) | 20 |
| Heating Capacity | 36,000 |
| Liquid Line Fitting Type | Sweat or Braze |
| Liquid Line Size (OD) | 3/8″ |
| Mounting Type | Ducted Multi-Position |
| Multi Zone | YES |
| OPT Code | 1P40MBABQ36XB3 |
| Phase | Single |
| Product Family | 40MBAB |
| Prop 65 | YES |
| Refrigerant | R-410A |
| Remote Control Included | YES |
| SEER | 18-20 |
| Sound Level (dBA) | 33.9-48.5 |
| Stages Cooling | 1 |
| Stages Heating | 1 |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 5/8″ |
| Tier | Performance™ |
| Tonnage | 3 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
