Description

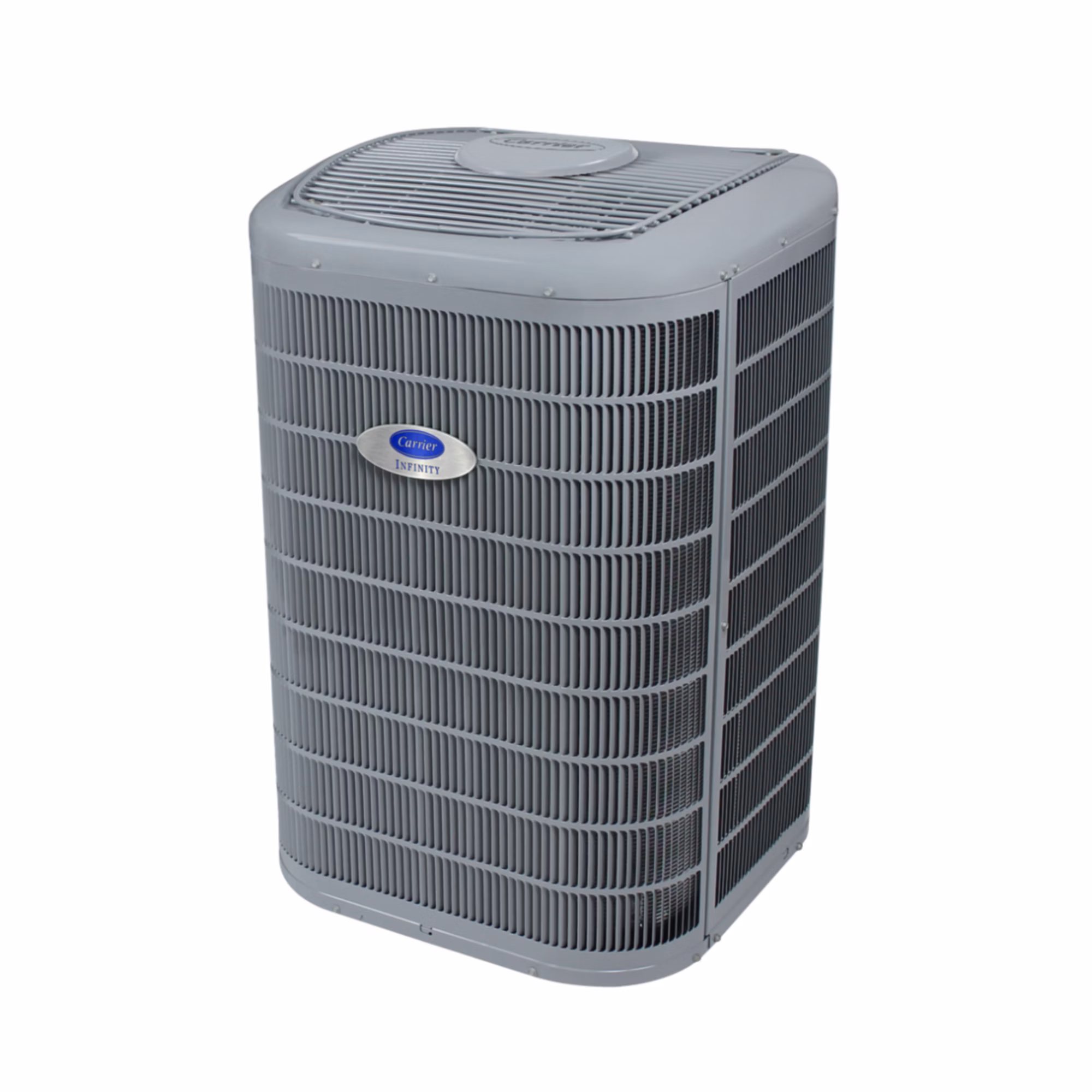

26VNA160W003 Carrier Infinity – 5 Ton 21 SEER2 Variable Speed Air Conditioner Condensing Unit (R-454B) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
26VNA160W003
26 = Puron Advance™ (R-454B) AC / Refrigerant & OD Type
V = Variable Speed / OD Design type
N = Infinity® / Tier
A = Initial Series / Major Series
1 = 21 SEER2 / SEER2
60 = 60,000 Btuh / Nominal Cooling Capacity
W = Standard SW AC / Variations
0 = Standard / Feature
0 = Not Defined
3 = 208/230-1 / Voltage
Carrier’s 26VNA1 with Greenspeed™ Intelligence is a variable speed cooling product providing up to 21 SEER2 cooling efficiency. Lower speed operation is available when needed in cooling, for enhanced comfort and dehumidification.
This product has been designed and manufactured to meet Energy Star® criteria for energy efficiency when matched with appropriate coil components. Refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.
Features / Benefits
Energy Efficiency
- Up to 21 SEER2, 12 EER2
- Mi
| Attributes | |
|---|---|
| Brand | Carrier® |
| CFM | 5,250 |
| Color | Gray |
| Compressor Type | Rotary |
| Condenser Coil Fins per Inch (FPI) | 20 |
| Condenser Fan CFM | 5250 |
| Condenser Fan Discharge | Vertical |
| Condenser Fan Motor Qty | 1 |
| Condenser Motor HP | 1/3 |
| Condenser Motor RPM | 200-825 |
| Condenser Motor Speeds | Variable |
| Condenser Motor Type | ECM (Electronically Commutated Motor) |
| Cooling Capacity | 60,000 |
| Country of Origin | USA |
| Cycle/Hertz | 60 Hz |
| EER2 | 12 |
| Energy Star Rated | YES |
| Full Load Amps | 0.88 |
| Inverter | NO |
| Liquid Line Fitting Type | Sweat or Braze |
| Liquid Line Size (OD) | 3/8″ |
| Locked Rotor Amps (LRA) | 150 |
| Maximum Overcurrent Protection (MOCP) | 50 |
| Maximum Piping Length | 200′ |
| Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| OPT Code | 1P26VNA160W003 |
| Phase | Single |
| Product Family | 26VNA1 |
| Prop 65 | YES |
| Rated Load Amps (RLA) | 23.7 |
| Refrigerant | R-454B |
| SEER2 | 21 |
| Sound Level (dBA) | 58-72 |
| Stages Cooling | Variable |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 1 1/8″ |
| Tier | Infinity™ |
| Tonnage | 5 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
