Description

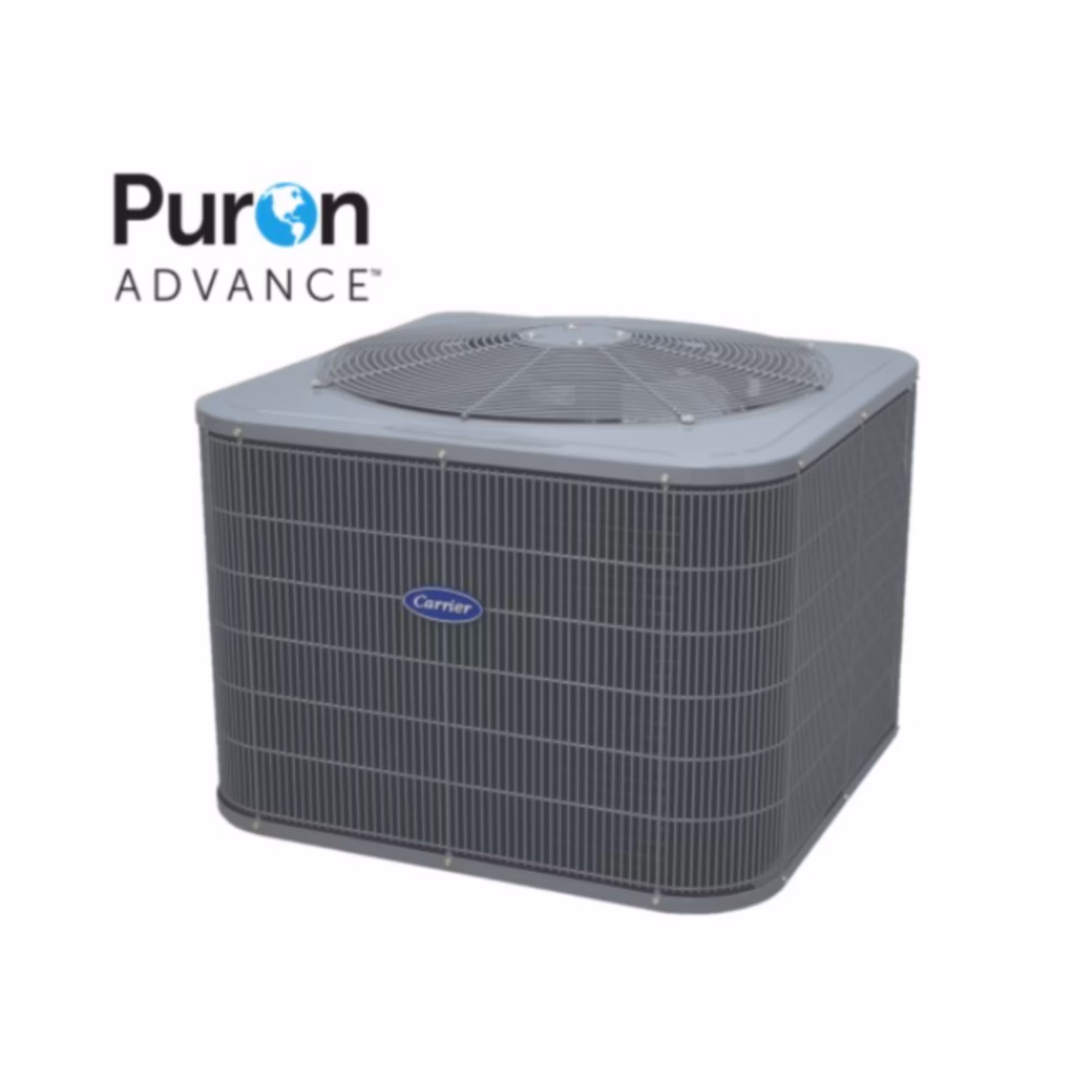

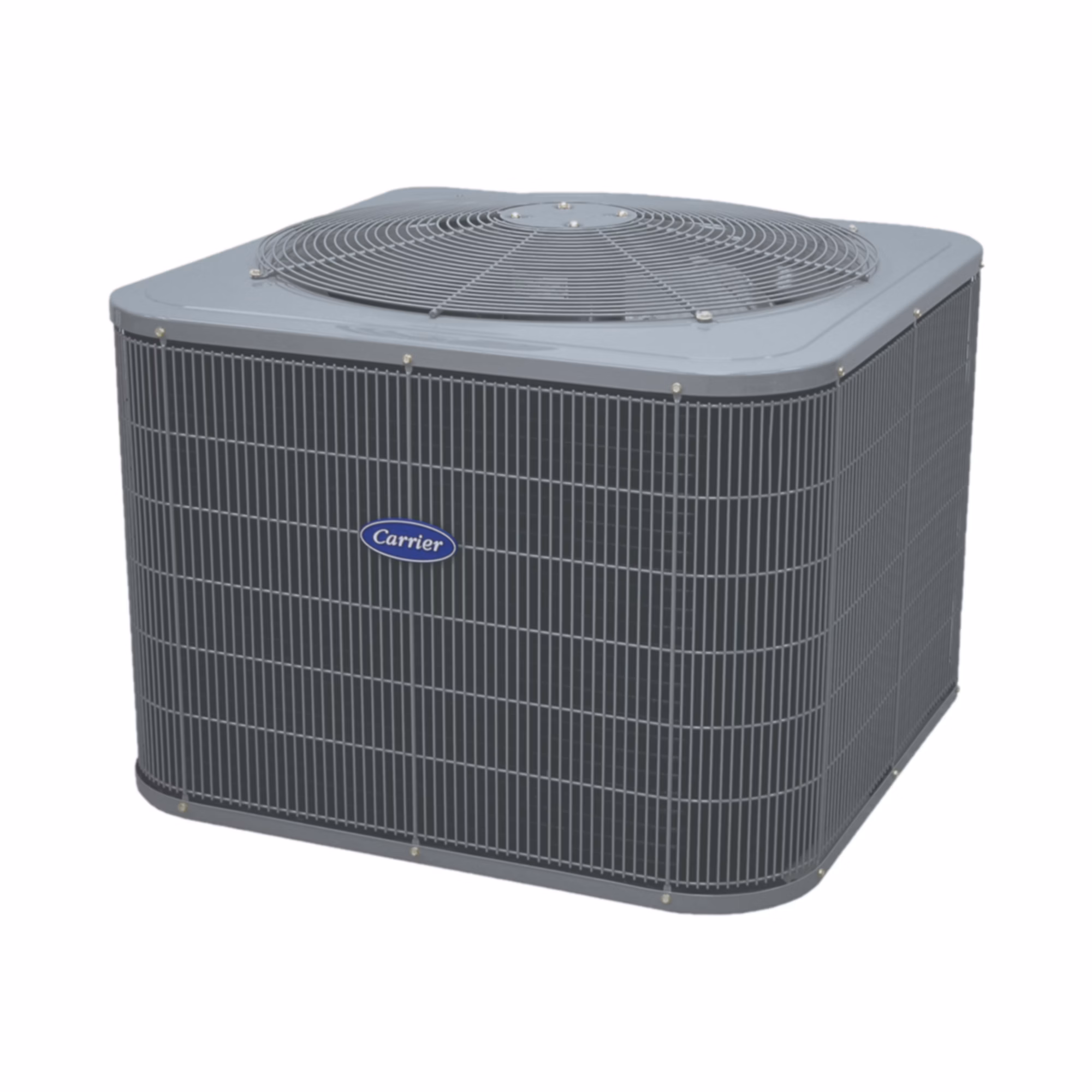

26SCA430N003 Carrier Comfort – 2.5 Ton 14 SEER2 Residential Air Conditioner Condensing Unit (R-454B) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
26SCA430N003
2?= Vertical Discharge / Airflow Type
6?= Puron Advance? AC / Refrigerant Type
S?= Single Stage / Design Type
C?= Comfort / Tier
A?= Major Series
4?= North Compliant / Efficiency
30?= 2.5 tons / Nominal Cooling Capacity
N?= Std North / Region
0?= Standard / Feature
0?= Standard / Special Feature
3?= 208/230-1 / Voltage
| Attributes | |
|---|---|
| Brand | Carrier? |
| Color | Gray |
| Compressor Type | Scroll |
| Condenser Coil Fins per Inch (FPI) | 25 |
| Condenser Fan CFM | 2700 |
| Condenser Motor HP | 1/10 |
| Condenser Motor RPM | 825 |
| Cooling Capacity | 30,000 |
| Country of Origin | MEX |
| Cycle/Hertz | 60 Hz |
| EER2 | 11-13.5 |
| Energy Star Rated | Yes |
| Full Load Amps | 0.6 |
| Liquid Line Fitting Type | Sweat or Braze |
| Liquid Line Size (OD) | 3/8″ |
| Locked Rotor Amps (LRA) | 67 |
| Maximum Overcurrent Protection (MOCP) | 25 |
| Maximum Piping Length | Varies (See Chart) |
| Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| OPT Code | 1P26SCA430N003 |
| Phase | Single |
| Product Family | 26SCA |
| Prop 65 | Yes |
| Rated Load Amps (RLA) | 12.5 |
| Refrigerant | R-454B |
| SEER2 | 13.4-16 |
| Solid Waste Tax | Yes |
| Sound Level (dBA) | 72 |
| Stages Cooling | (1) Single |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 3/4″ |
| Tonnage | 2.5 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
