Description

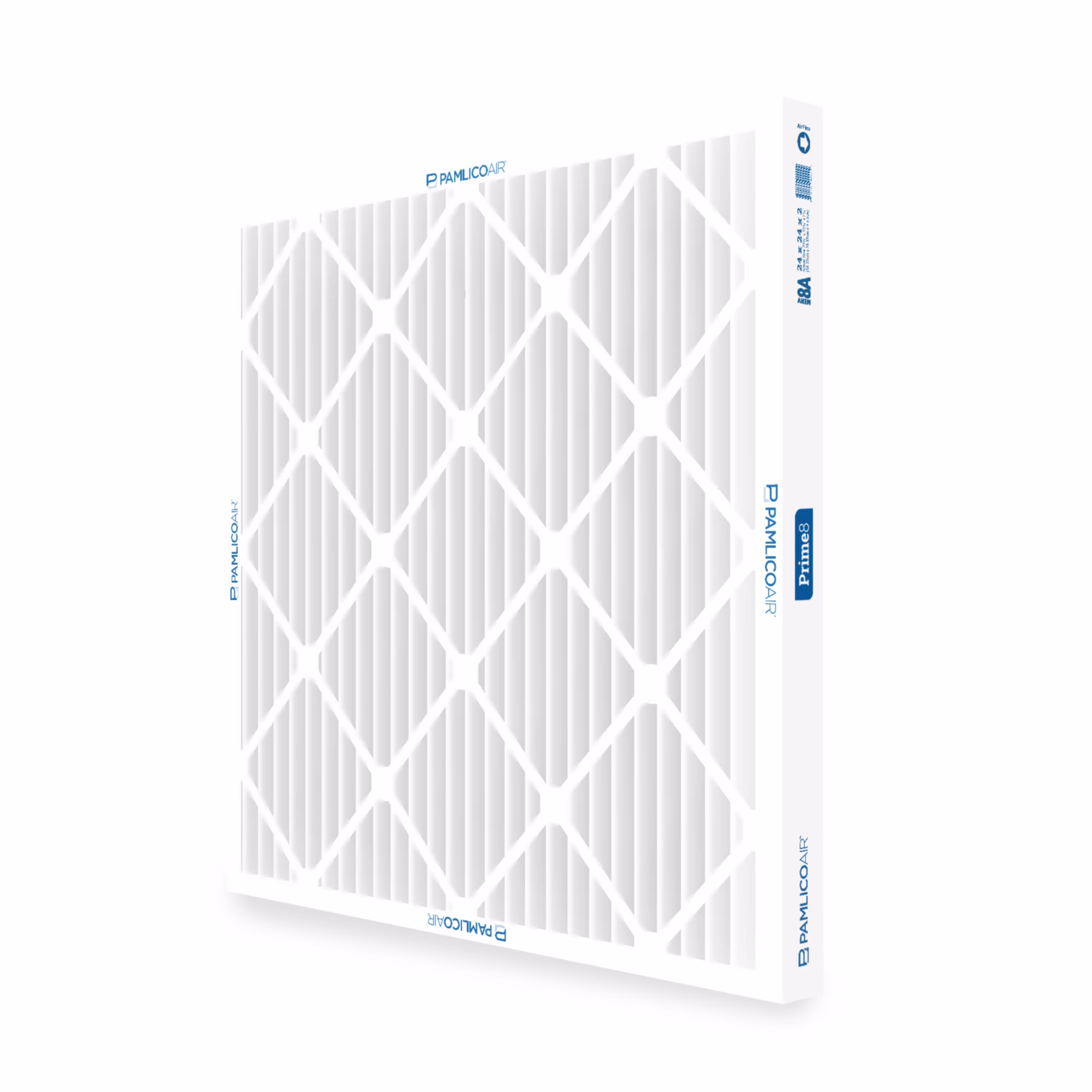

20X25X2PL40 PAMLICO AIR – 20X25X2 Prime 8 Standard Pleated Filter MERV 8 – E:Mail: sales@walkair.us to confirm availability or for volume discounts
The Prime 8 is a medium efficiency pleated air filter, created to provide high efficiency, high dust holding capacity and low pressure drop.The Prime 8 is available in standard capacity as well as high capacity(Prime8HC). As an extended-surface air filter, the Prime8, performs at superior levels in comparison to standard pleated filters. The Prime 8 has a MERV 8A rating per ASHRAE Test Standards 52.2 Appendix J-2017. It is also UL 900 Classified. The Prime 8 ‘s rating of MERV 8A makes it the perfect upgrade fromour Select Series panel filters as well as standard MERV 6 and MERV 7 pleated filters.The Prime 8 has a durable, moisture-resistant, beverage board frame with wire-supported media. The Prime 8 ‘s media is a mechanical blend of synthetic fibers that is designed for use specifically in extended surface pleated filters. Our Prime 8 mechanical media means that these filters are highly efficient, have a high dust holding capacity and a low pressure drop.The media also allows the Prime 8 to maintain its MER
| Attributes | |
|---|---|
| Brand | MANN+HUMMEL |
| Country of Origin | USA |
| Cubic Measurement | 0.5787 |
| Filter Efficiency | 1 to 3 Microns less than or equal to 20%; 3 to10 Microns less than or equal to 70% |
| Filter Rating (Microns) | E2 ≥ 20% at 1.0-3.0 µm, E3 ≥ 70% at 3.0-10.0 µm |
| Filter Type | Throwaway |
| Frame Type | Craftboard |
| MERV Rating | 8 |
| Nominal Filter Height in Inches | 25 |
| Size (Nominal) | 20 x 25 x 2 |
| Nominal Filter Thickness in Inches | 2 |
| Nominal Filter Width in Inches | 20 |
| Pleats per Linear Feet | 10 |
| Prop 65 | NO |
| Removes Fine Dust | NO |
| Removes Smoke | NO |
| UPC | 840100900301 |
