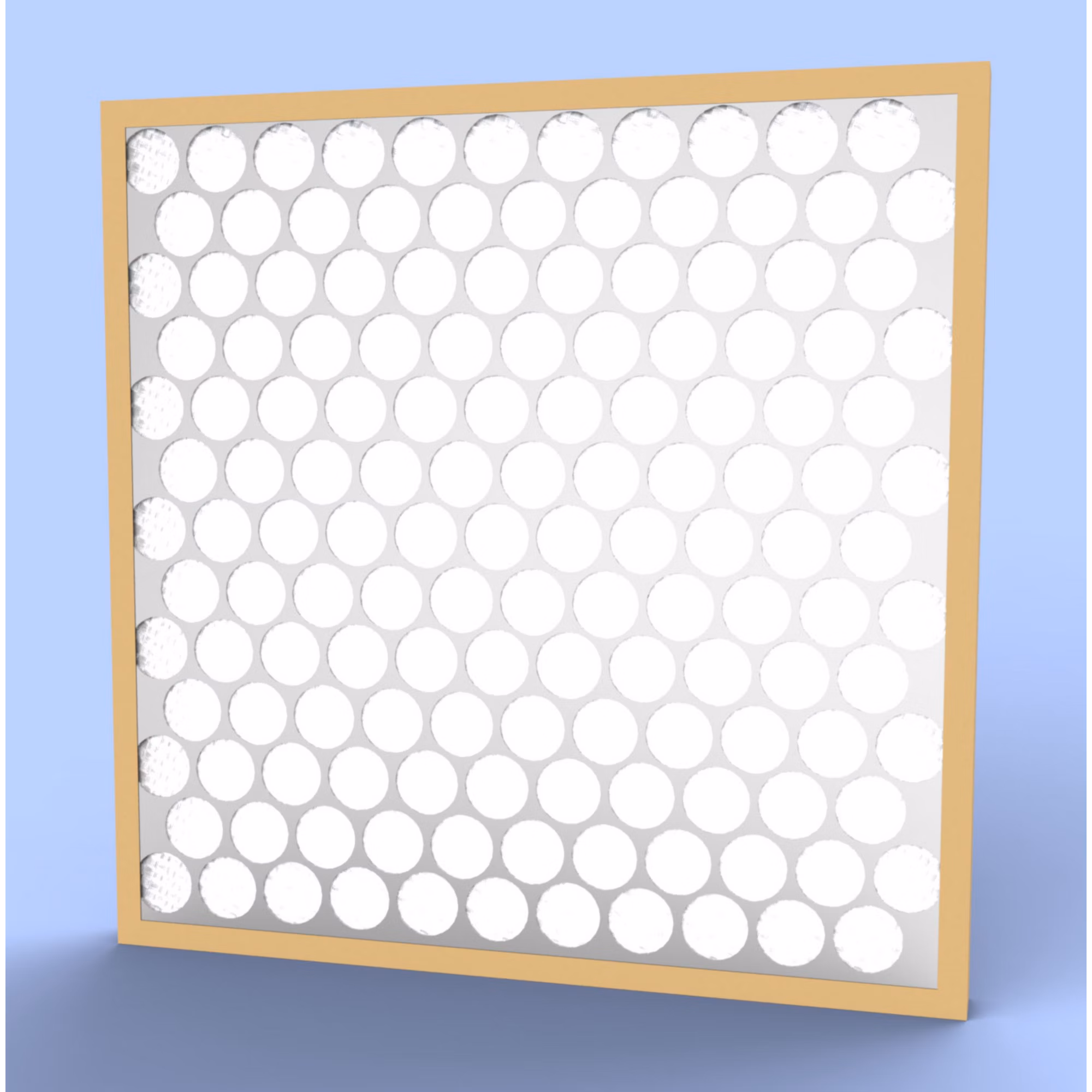

20X20X1PSF Glasfloss 20X20X1 Fiberglass Heavy Duty Disposable Panel Filter with Metal Grids – E:Mail: sales@walkair.us to confirm availability or for volume discounts
The Glasfloss PTA Series disposable panel filter has set the standard for quality and durability. This rigidly constructed air filter maintains its integrity where others fall short. Always the highest quality, Glasfloss disposable panel filters have metal grids on both the air entry and the air leaving sides.
The standard size filter element shall be constructed of a single piece of heavy-duty, one piece craftboard frame. The metal grid shall be thermally bonded internally to the frame. The metal grid shall be 28 gauge and provide 82% open area. All corners shall be closed and sealed. The filter media shall be constructed in a progressively dense fashion from air-entering to air-leaving side. The PolyStrand® filter media shall be made from fibers completely coated with a polyester coating. Glasfloss disposable panel filters shall be rated to withstand temperatures up to
180 degrees Fahrenheit. All filters shall be Classified under U.L. std. 900.
| Attributes | |
|---|---|
| Brand | Glasfloss |
| Composition | Heavy-Duty Fiberglass |
| Country of Origin | USA |
| Cubic Measurement | 0.2315 |
| Dimensional Weight | 4 |
| EAN | 0604443999190 |
| Filter Efficiency | 20% |
| Filter Media Type | Fiberglass |
| Filter Rating (Microns) | 3.0 to 10.0 |
| Filter Type | Throwaway |
| Frame Type | Craftboard |
| MERV Rating | 5 |
| Nominal Filter Height in Inches | 20 |
| Size (Nominal) | 20 x 20 x 1 |
| Nominal Filter Thickness in Inches | 1 |
| Nominal Filter Width in Inches | 20 |
| Prop 65 | YES |
| UOM | EA |
| UPC | 604443999190 |
