Description

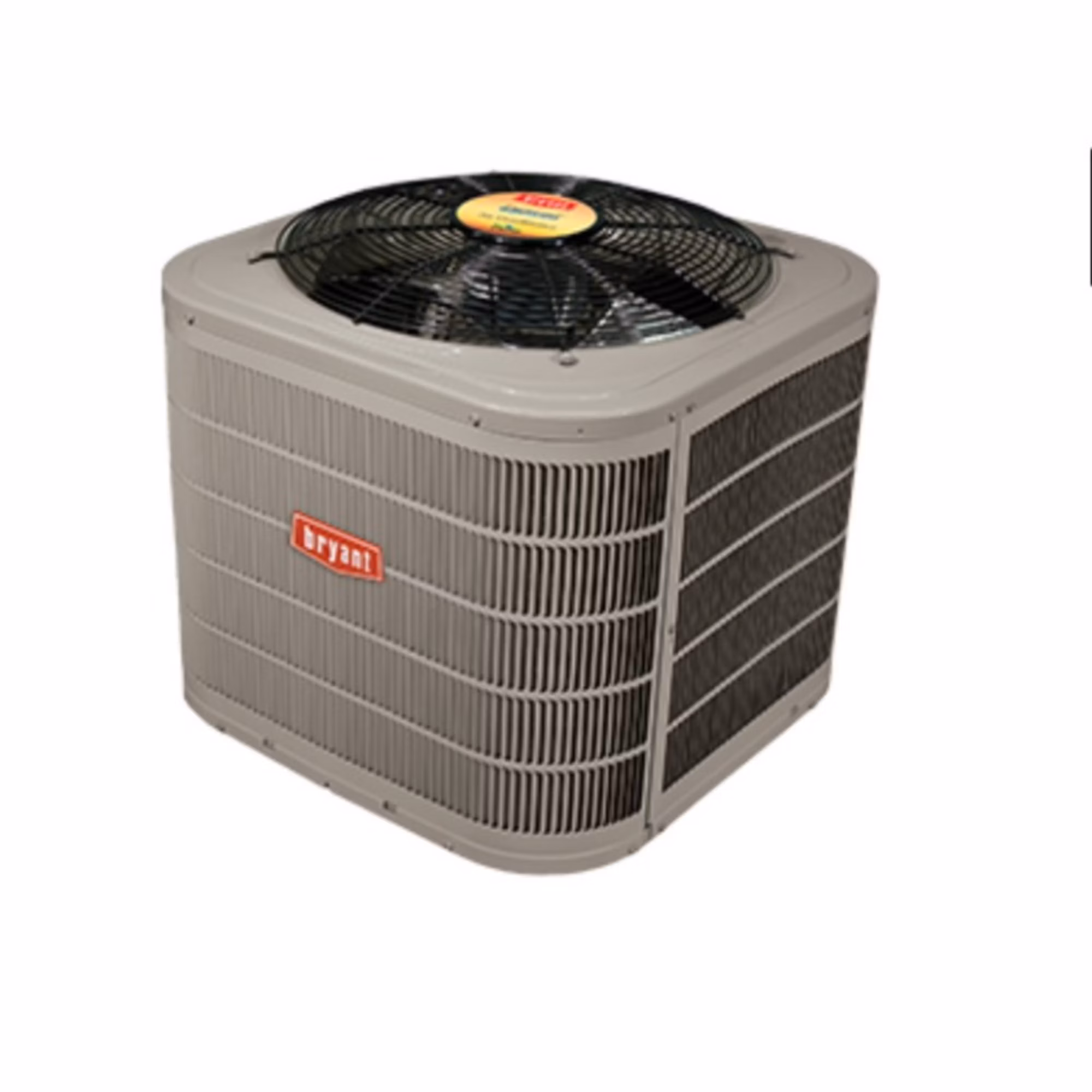

148TAN06000W Bryant Preferred – 5 Ton 18 SEER2 Residential 2-Stage Air Conditioner Condensing Unit (R-454B) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
148TAN06000W
1 = Vertical Discharge AC / Airflow Type
4 = Puron Advance™ Preferred™ / Refrigerant Type/Tier
8 = 18.0 SEER2 / Efficiency
T = Two Stage / Design Type
A = Major Series
N = 208/230-1 / Voltage
0 = Open
60 = 5 tons / Nominal Cooling Capacity
0 = Standard / Feature
0 = Standard / Special Feature
W = Std SW / Region
| Attributes | |
|---|---|
| Approvals | UL Listed |
| Brand | Bryant® |
| CFM | 4,781 |
| Color | Gray |
| Compressor Type | Scroll |
| Condenser Motor HP | 1/3 |
| Condenser Motor RPM | 815 |
| Condenser Motor Speeds | 1 (Single) |
| Condenser Motor Type | ECM (Electronically Commutated Motor) |
| Cooling Capacity | 54,500-58,500 |
| Cooling Rated Capacity (Btu/h) | 60000 |
| Country of Origin | USA |
| Cycle/Hertz | 60 Hz |
| EER2 | 14 |
| Energy Star Rated | Yes |
| Full Load Amps | 2.6 |
| Inverter | No |
| Liquid Line Fitting Type | Sweat or Braze |
| Liquid Line Size (OD) | 3/8″ |
| Locked Rotor Amps (LRA) | 149 |
| Maximum Overcurrent Protection (MOCP) | 50 |
| Maximum Piping Length | 250′ |
| Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| OPT Code | 1P148TAN06000W |
| Phase | Single |
| Product Family | 148TAN |
| Prop 65 | Yes |
| Rated Load Amps (RLA) | 22.3 |
| Refrigerant | R-454B |
| SEER2 | 18 |
| Solid Waste Tax | Yes |
| Sound Level (dBA) | 73 |
| Stages Cooling | (2) Two |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 7/8″ |
| Tonnage | 5 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
