Description
TT-AK249-V2 Air Knight – IPG Air Purification System 24V 9″ 3-7.5T – E:Mail: sales@walkair.us to confirm availability or for volume discounts

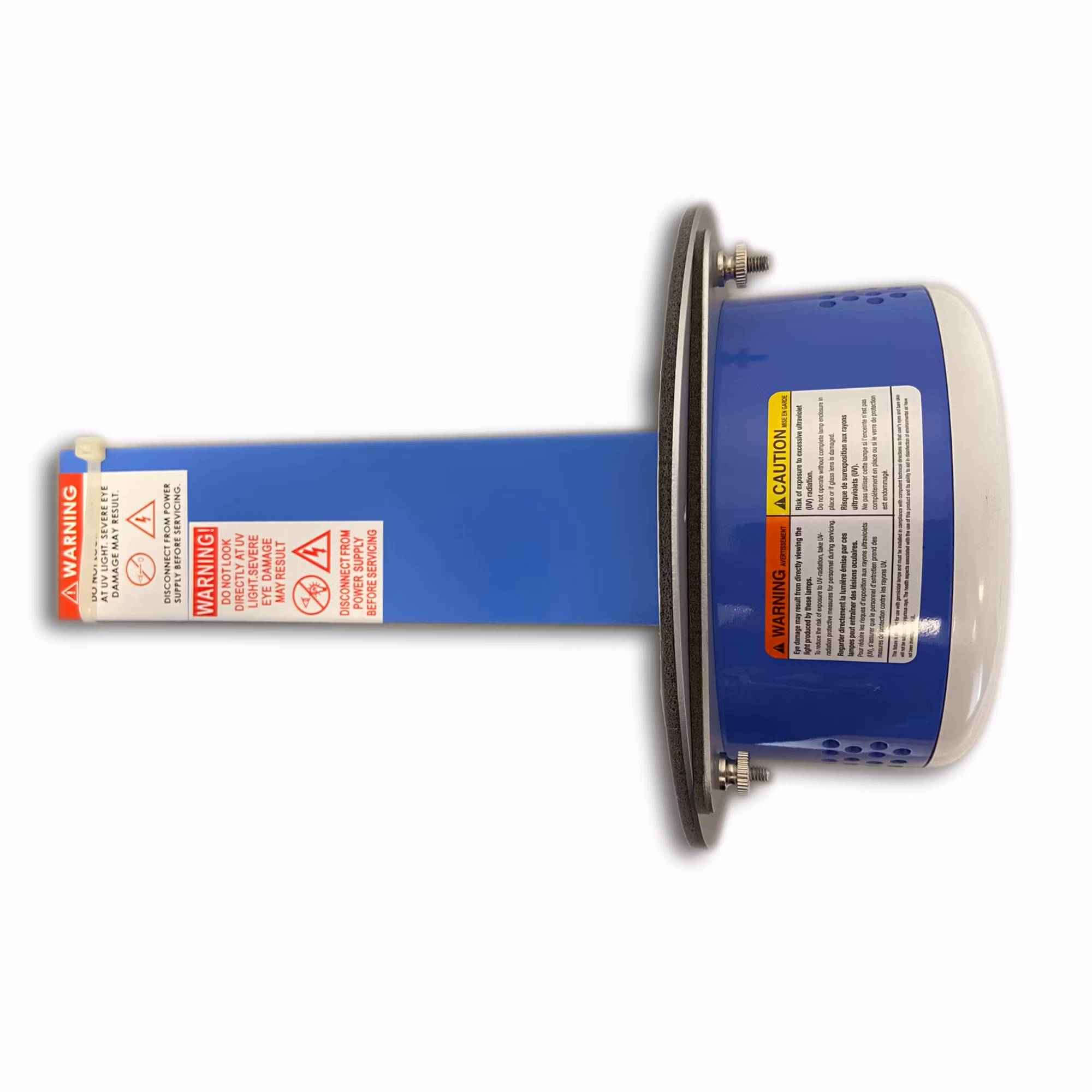

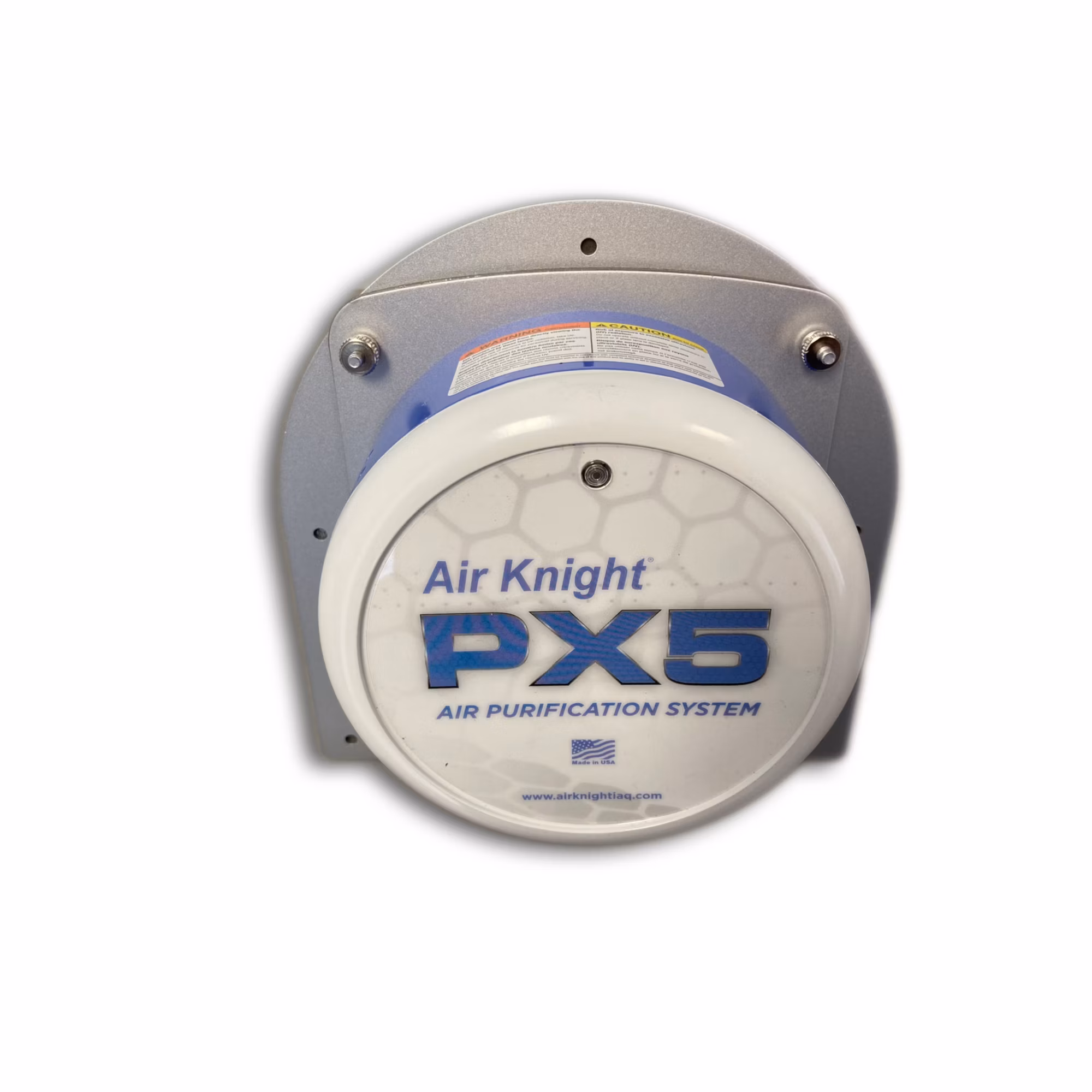

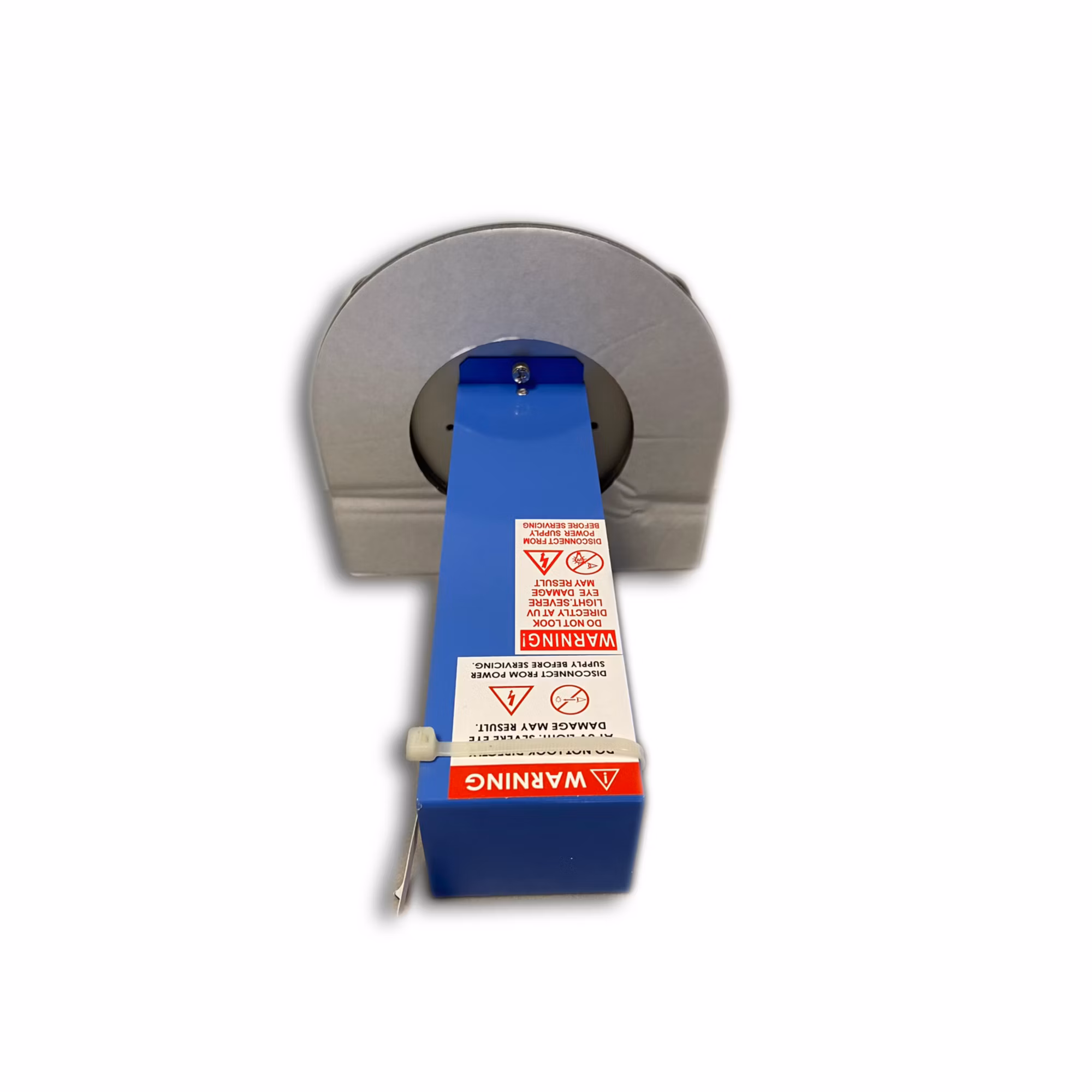

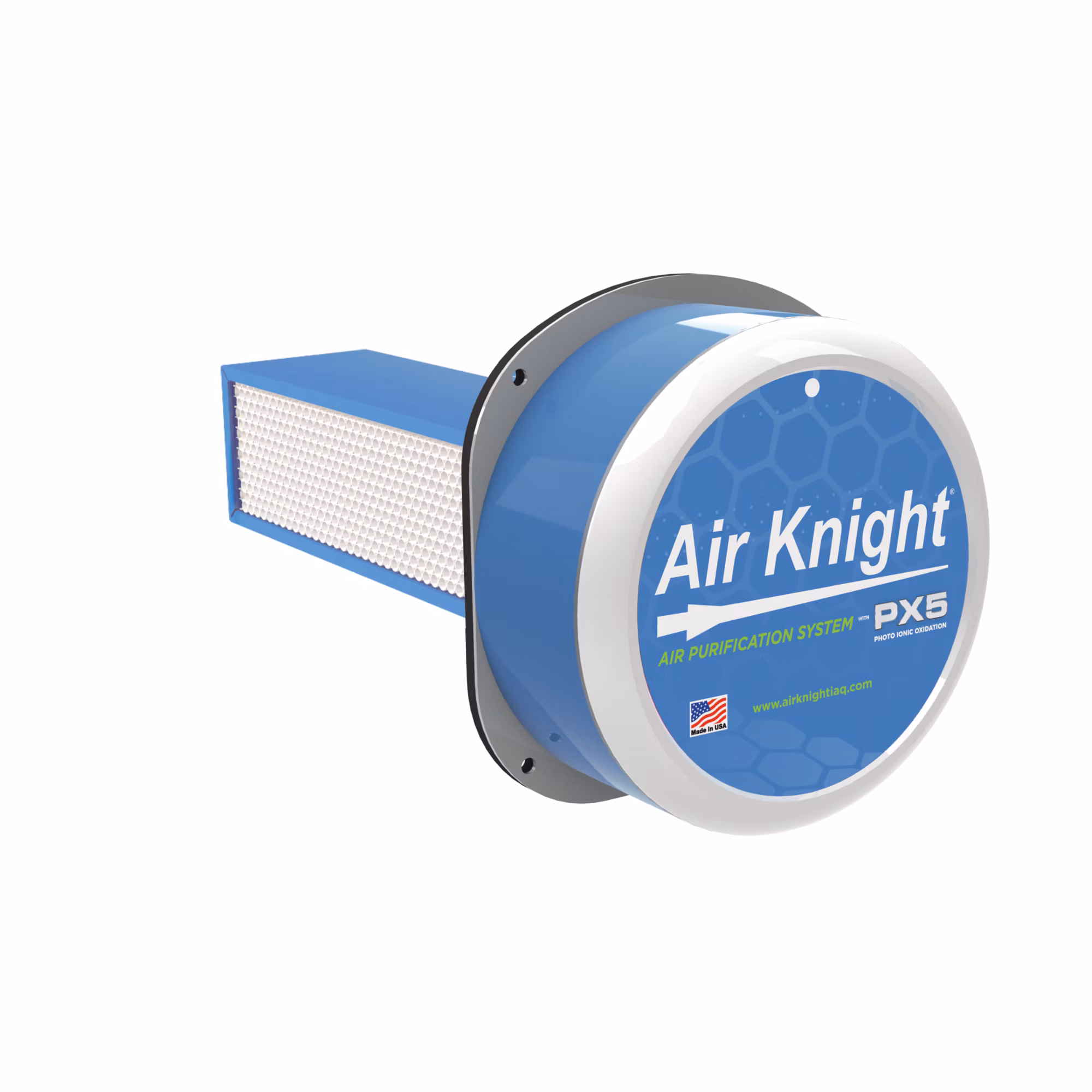

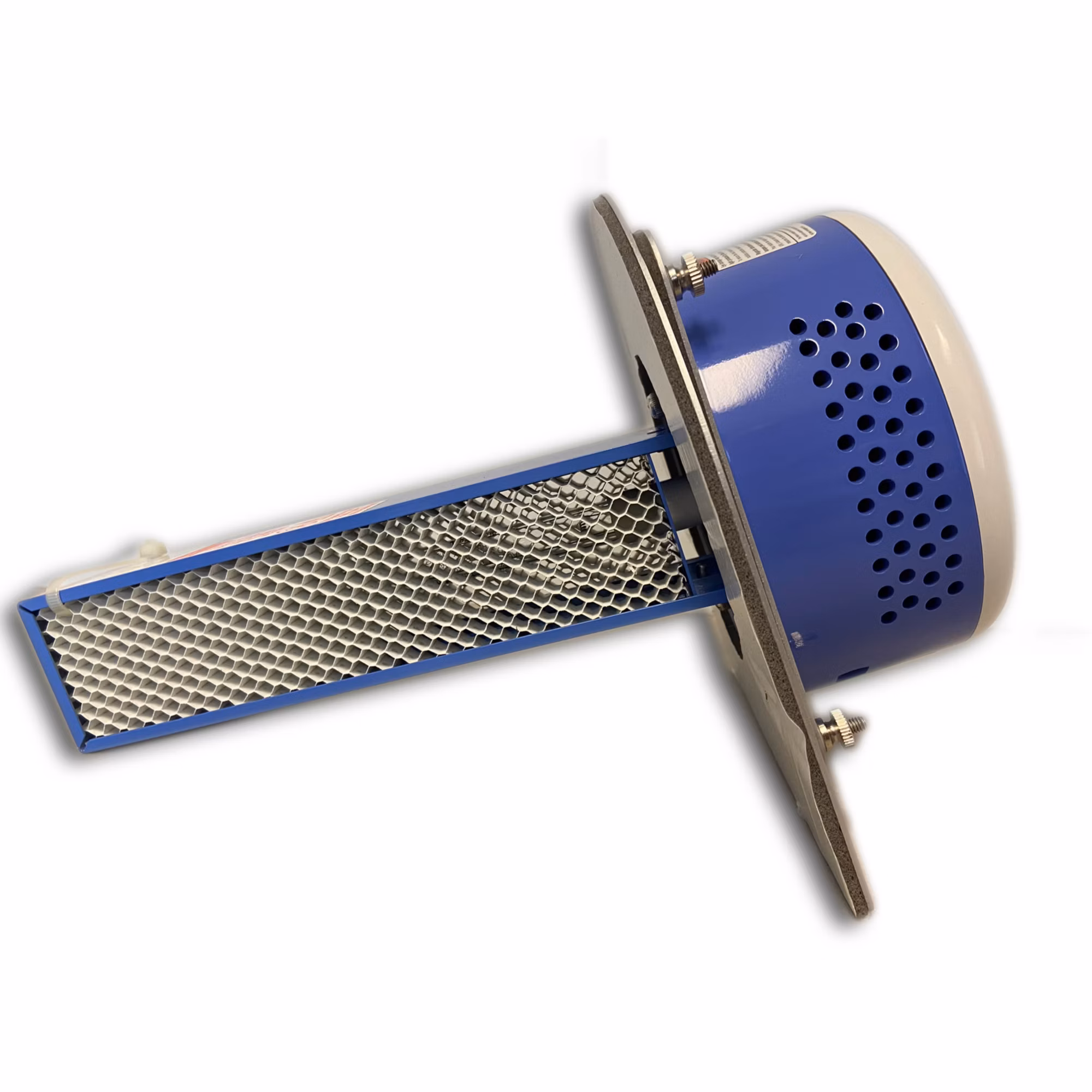

The Air Knight PX5 24V 9″ Air Purification System is an in duct UV air treatment solution designed for 3–7.5 ton residential and light commercial HVAC systems. It uses PX5 UV technology to treat air as it passes through the duct system without restricting airflow.
Ideal for contractors needing a simple, low profile IAQ add on compatible with modern high SEER and light commercial equipment.
Key Features & Benefits
• PX5 UV technology designed to treat airborne contaminants within the HVAC air stream
• No impact on airflow, supporting high efficiency and commercial system requirements
• 24V operation for straightforward connection to standard HVAC controls
• Compact 9″ in duct form factor simplifies retrofit and new installations
• Durable housing suitable for continuous HVAC operation
• Works alongside existing filtration without modification
Common Applications
• Residential whole home air quality upgrades
• Light commercial HVAC systems up to
| Attributes | |
|---|---|
| Approvals | UL Listed; UL Recognized |
| Brand | Air Knight |
| Country of Origin | USA |
| Cubic Measurement | 0.7415 |
| Cycle/Hertz | 50/60 Hz |
| Dimensional Weight | 4 |
| Electrical Rating | 24V |
| Lamp Dimensions | 8.6250″ |
| Lamp Life | 2 Years |
| Lamp Spectrum | 185 nanometers |
| Lamp Type | Ultraviolet |
| Maximum Temperature | 185°F (85°C) |
| Mounting Type | Duct |
| Operating Temperature Range | 130 |
| Phase | Single |
| Power Supply | 24 VAC |
| Prop 65 | YES |
| Reduces Bacteria | YES |
| Reduces Mold | YES |
| Reduces Odors | YES |
| Reduces Viruses | YES |
| Removes Bacteria | NO |
| Removes Mold | NO |
| Removes Odors | NO |
| Removes Viruses | NO |
| UL2998 Standard | NO |
| UL867 Standard | NO |
| UOM | EA |
| UPC | 747454001350 |
| Voltage | 24 VAC |
