Description

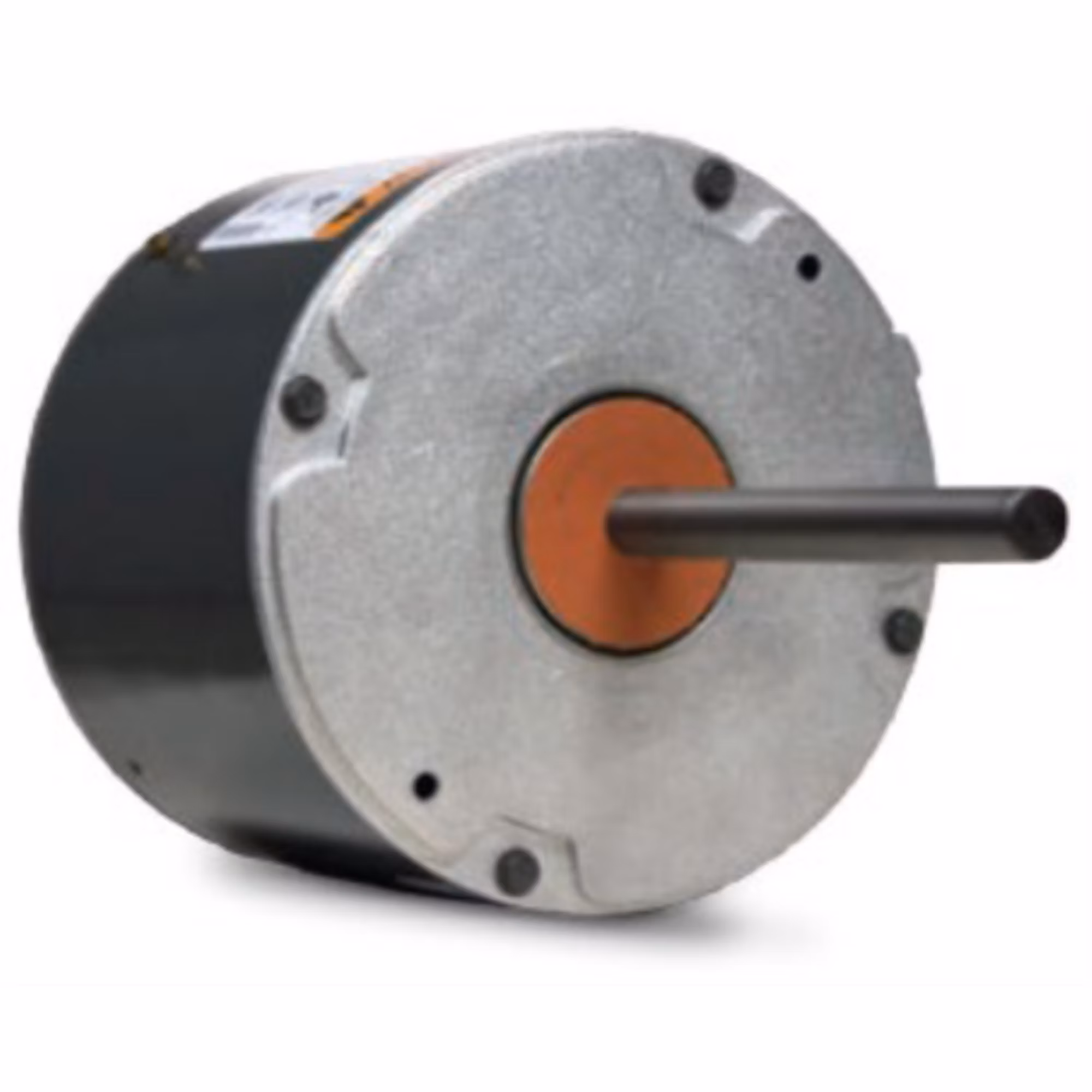

Totaline – Totaline Condenser Fan Motors are designed as a universal PSC replacement for vertical shaft- up or shaft-down applications. Shell and end shields are closed for protection against weather. All Totaline Condenser Fan Motors feature reversible rotation and thru bolt or band mounting for air conditioning or heat pump applications.
- 48Y NEMA frame
- 1-year warranty
- 208 – 230 VAC
- 1/6 HP
- Single phase
- 1075 RPM
Specifications
| Dimensions | |
|---|---|
| Length | 5.8 Inches (in) |
| Width | 6.2 Inches (in) |
| Height | 12 Inches (in) |
| Weight | 9.15 Pounds (lbs) |
| Attributes | |
| Ambient Operating Temperature | 60°F (15.56°C) |
| Amps | 1.2 |
| Bearing Type | Ball |
| Brand | Totaline, TOTALINE® |
| CSA Listing | Yes |
| Capacitor MFD (µF) | 10 |
| Country of Origin | MEX |
| Cubic Measurement | 0.2497 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 4 |
| Duty | Continuous (S1) |
| Full Load Amps | 1.2 |
| Motor HP | 1/6 HP |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting | Base, Stud, Strap |
| NEMA Frame | 48 |
| Number of Speeds | 1 (Single) |
| Overall Length | 5.8 |
| Phase | Single |
| Prop 65 | No |
| Protection | No Protection |
| RPM | 1075 |
| Rotation | Reversible |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 6 |
| UL Listed | Yes |
| UOM | EA |
| UPC Barcode | 662442154552 |
| Voltage | 208-230 VAC |
