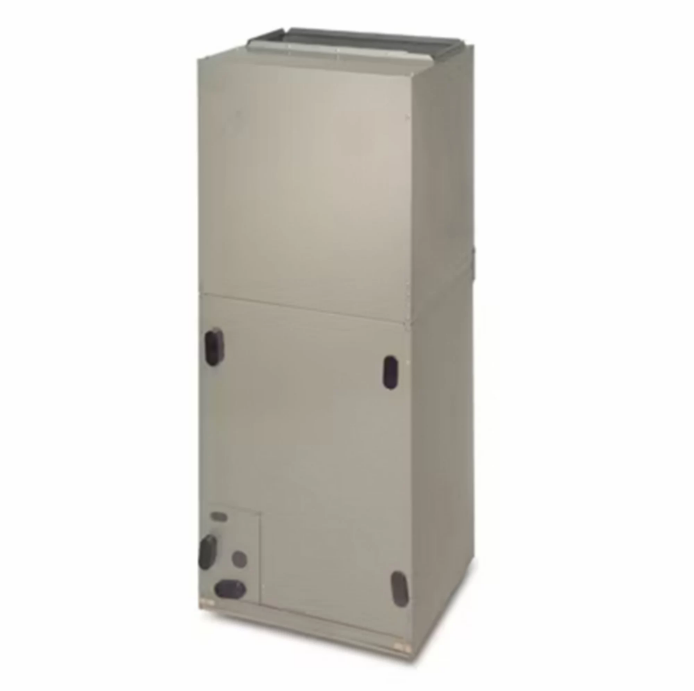

FT5ANXB24L00 2 Ton Residential Fan Coil Multipoise with InteliSense Technology R-454B (Aluminum Coil) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
FT5ANXB24L00
F = Fan Coil / Product
T = Variable Speed Constant Airflow ECM Motor / Type
5 = Puron Advance® (R-454B)
A = Major Series
N = 208/230V, 1 ph, 60 Hz / Electrical
X = Singular, TXV / Cabinet Type / Metering Device
B = 17″ / Cabinet Width
24 = 24,000 / Nominal Capacity
L = Aluminum / Coil Type
00 = No Heat / Electric Heater Size
FEATURES
Environmentally Balanced Refrigerant Technology
- Puron Advance®, chlorine-free, non-ozone depleting refrigerant
- Refrigerant leak detection dissipation system for added safety
- Thermostatic Expansion Valve (TXV) designed to maximize performance with Puron Advance® refrigerant
Energy Efficient Operation
- Variable Speed Constant Airflow ECM (Electronically Commutating Motor) operates efficiently at all speeds
- Maximizes efficiency of heating and cooling systems
- Ultra low power consumption during fan only operation
Indoor Weather Control
- Warm, comfortable heating air temperatures
- Unmatched humidity control, especially with Bryant’s thermostat with relative humidity controls
Airflow and Sound Technology
- Diffuser air discharge section for high airflow efficiency and quiet, smooth operation
- High duct static capability
- Design meets stringent regulations for cabinet air leakage of less than 2% cabinet leakage rate at 1 inches W.C. and 1.4% cabinet leakage rate at 0.5 inches W.C. when tested in accordance with ASHRAE 193 standard.
Condensate Control and Disposal Technology
- Minimal standing waterless microbial growth for improved IAQ and reduced condensate line clogging and related condensate leakage
- Condensate fittings relocated away from turbulent airflow patterns at the blower entrance for improved condensate control performance
- Overflow feature for slope coil units allows condensate to exit the unit without damage to product under clogged primary and secondary line conditions
- Tested for condensate disposal at conditions much more severe than those required by AHRI
- Primary and secondary drain connections to comply with HUD
- All pans constructed of an injection molded glass-filled polycarbonate engineered resin material, with brass drain connections.
- High density, super thick cabinetry insulation with vapor barrier
- Pre-painted galvanized sheet metal cabinet
Heat Transfer Technology
- Grooved tubing
- Lanced sine wave aluminum fins
- Discreet refined counter-flow refrigerant circuitry
- Bi-flow hard shut-off TXV metering device with mechanical fittings
Quality Assisting, Ease of Installation and Service Features
- All units multipoise
- Provision made for suspending from roof or ceiling joints
- Modular cabinet on 36 thru 60 size units
- Sweat connections for leak free service
- Multiple electrical entry for application flexibility (high and low voltage)
- Low voltage terminal strip, to safely hold connections within the cabinet
- Cabinet construction features innovations designed to prevent cabinet sweating
Controls and Electrical Features
- InteliSense™ Board to maximize comfort, efficiency, and safe heater airflow operation
- Easy plug connection provided for quick installation of accessory heater packages
- 40VA 208/230V transformer
- Replaceable 5A blade-type auto fuse protects against transformer secondary short
Filter Features
- Factory supplied filter
- New standard sized filter rack fits most common size replacement filters
WARRANTY
- Default 5-year parts limited warranty (including compressor and coil)
- – 10-year parts limited warranty with timely registration *.
- Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration.
* Applies to original purchaser/homeowner and not available to subsequent owners, except in jurisdictions where laws dictate otherwise.
See Warranty certificate for complete details and restrictions.
| Attributes | |
|---|---|
| Air Flow Direction | Multi-Position |
| Approvals | UL Listed |
| Blower Motor HP | 1/2 |
| Blower Motor Speeds | Variable |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Brand | Bryant®, Carrier® |
| CFM | 525-1,050 |
| Cabinet Width | 17 |
| Color | Putty |
| Cooling Capacity | 525-1,050 |
| Cooling Rated Capacity (Btu/h) | 24000 |
| Country of Origin | MEX |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| Energy Star Rated | No |
| Filter Size | 16″ x 20 |
| Includes Filter Rack | Yes |
| Liquid Line Fitting Type | Sweat or Braze |
| Liquid Line Size (OD) | 3/8″ |
| Maximum Overcurrent Protection (MOCP) | 15 |
| Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| OPT Code | 1PFT5ANXB24L00 |
| Phase | Single |
| Product Family | FT5 |
| Prop 65 | Yes |
| Refrigerant | R-454B |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 3/4″ |
| Tonnage | 2 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
