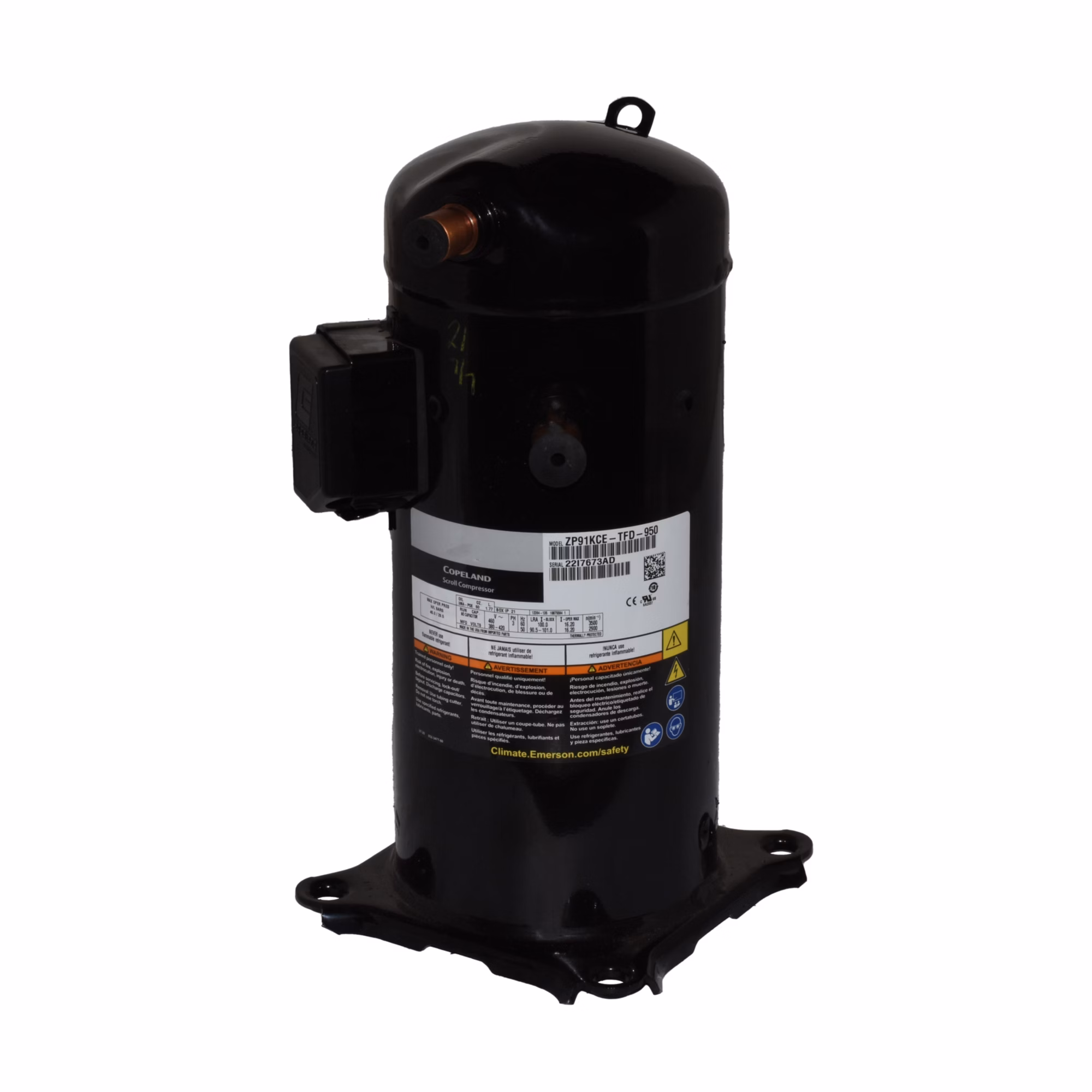

Factory Authorized Parts – Carrier ZP91KCE-TFD-950 Copeland Scroll Compressor, 460V 3Ph, R410A, 14.3 RLA, 90,500 Capacity

$3,131.52

E:Mail: sales@walkair.us to confirm availability or for volume discounts

SKU: ZP91KCE-TFD-950 Category: Tag:

Description

Factory Authorized Parts – ZP91KCE-TFD-950 Copeland Scroll Compressor, 460V 3Ph, R410A, 14.3 RLA, 90,500 Capacity – E:Mail: sales@walkair.us to confirm availability or for volume discounts

Benefits of Copeland scroll compressors:
Only three moving parts–fewer moving parts means less maintenance needed. By contrast, other reciprocating compressors can have up to nine moving parts in each cylinder.
No complex internal valves–the simplified design resists liquid refrigerant slugging, debris and failure,
Higher efficiency–Copeland was one of the first companies to create partial load operation across its compressor line. Their scroll compressors tend to be more efficient across its entire operating range.
Lower vibration levels–this means not just less noise, but also less wear and tear on components.

Please note, this is a special order, non-stock item and will be shipped direct from the vendor. Non-stock and Special Order items cannot be cancelled once processed, and are non-returnable. Customer is responsible for freight charges. These items may have an extended lead time. Use chat if you need to confirm lead time before ordering. By purchasing this product, you agree to t

Attributes
Amps 14.3
Approvals UL Recognized
BTU Output 90,500
Brand Copeland
Compressor Housing Hermetic
Compressor Type Scroll
Condensing Temperature 120°F to 130°F (48.89°C to 54.44°C)
Country of Origin USA
Cubic Measurement 2.3698
Cycle/Hertz 50/60 Hz
Dimensional Weight 29
Discharge Connection Size OD 3/4″
Discharge Connection Type Stub
Displacement 5.16 (in^3/Rev)
EAN 0822529436944
Evaporating Temperature 45°F (7.22°C), 35°F
GTIN 00822529436944
Liquid Temperature 105°F to 115°F (40.56°C to 46.11°C)
Locked Rotor Amps (LRA) 100
Mass Flow (lbs/hr) 1120 lbs./hr.; 1335 lbs./hr.
Mounting Dimensions 7.5″ x 7.5″ x 18.2″
OPT Code ZP91KCETFD950
Oil Charge Initial (oz.) 57
Oil Type Polyolester (POE)
Phase Three
Prop 65 NO
Protection Yes
Rated Load Amps (RLA) 14.3, 12.8
Refrigerant R-410A
Return Gas Temperature 55°F, 65°F (18.33°C)
Sound Level (dBA) 75-80
Suction Line Fitting Type Stub
Suction Line Size (OD) 7/8″
UOM EA
UPC 822529436944
Voltage 380 VAC: 420 VAC; 460 VAC

Additional information

Weight 90 lbs
Dimensions 9.7 × 9.9 × 17.4 in
