Description

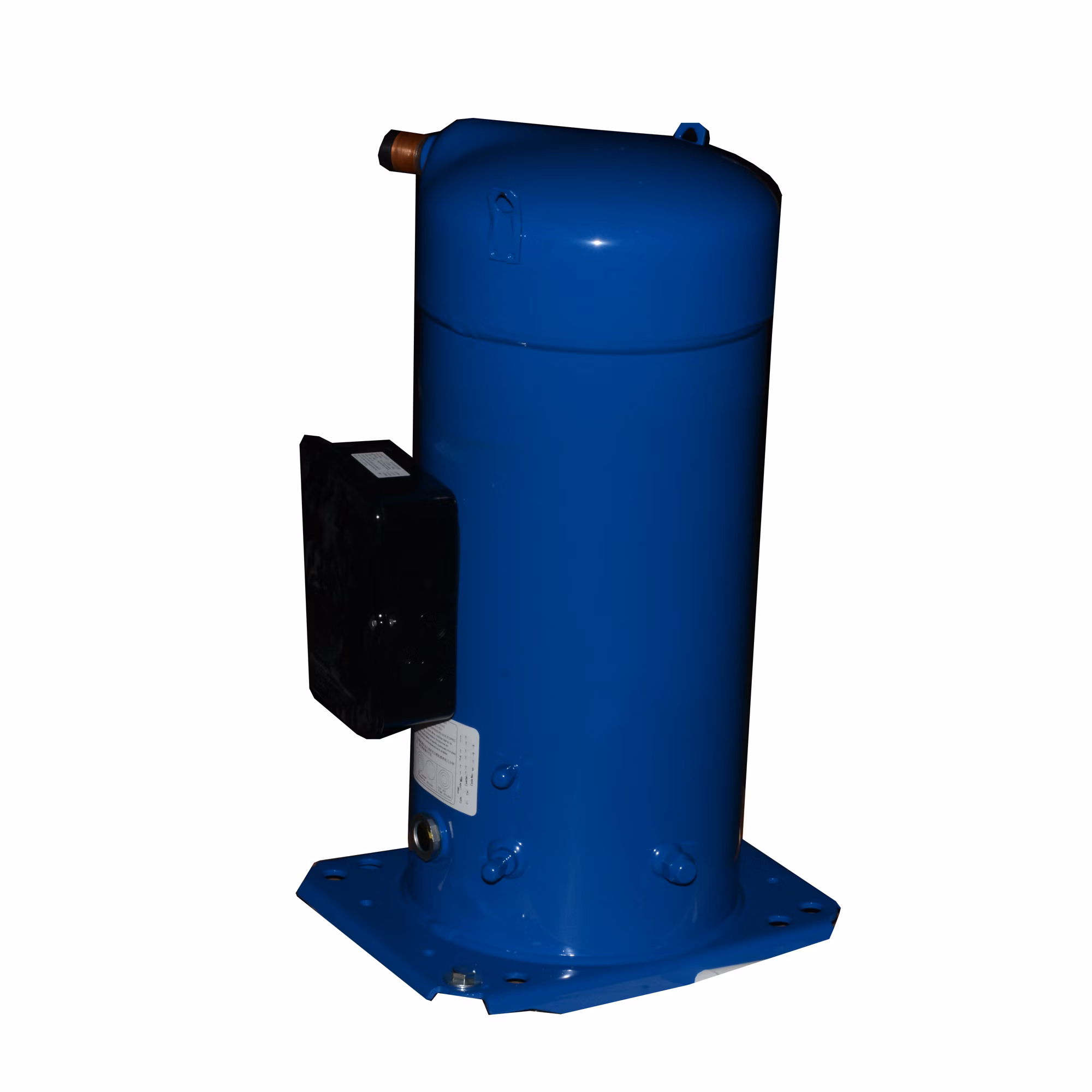

Factory Authorized Parts – P040-16351 Danfoss – Scroll Compressor, A/C & H/P, 208/230V 3Ph, R22, 43.6 RLA, 163,000 Capacity – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Factory Authorized Parts™ – Danfoss – P040-16351 Scroll Compressor, A/C & H/P, 208/230V 3Ph, R22, 43.6 RLA, 163,000 Capacity
Features
• For Heat Pump & Air Conditioning duty
• R-22
• 3 Phase
| Attributes | |
|---|---|
| Amps | 43.6 |
| BTU Output | 163,000 |
| Brand | Danfoss |
| Compressor Housing | Hermetic |
| Compressor Type | Scroll |
| Condensing Temperature | 130°F (54.44°C) |
| Country of Origin | USA |
| Cubic Measurement | 10.5 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 133 |
| Discharge Connection Size OD | 1 1/8″ |
| Discharge Connection Type | Sweat or Braze |
| Displacement | 1606 (cu.ft/Hr) |
| Evaporating Temperature | 45°F (7.22°C) |
| GTIN | 00662442702487 |
| Locked Rotor Amps (LRA) | 265 |
| Mounting Dimensions | 8.5″ x 12″ |
| OPT Code | P040-16351 |
| Oil Charge Initial (oz.) | 130 |
| Oil Type | Mineral (MO) |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 43.6 |
| Refrigerant | R-22 |
| Sound Level (dBA) | 84 |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 1 5/8″ |
| UOM | EA |
| UPC | 662442702487 |
| Voltage | 200/230 VAC |
