Description
Factory Authorized Parts – P040-12671 Scroll Compressor R22 – E:Mail: sales@walkair.us to confirm availability or for volume discounts

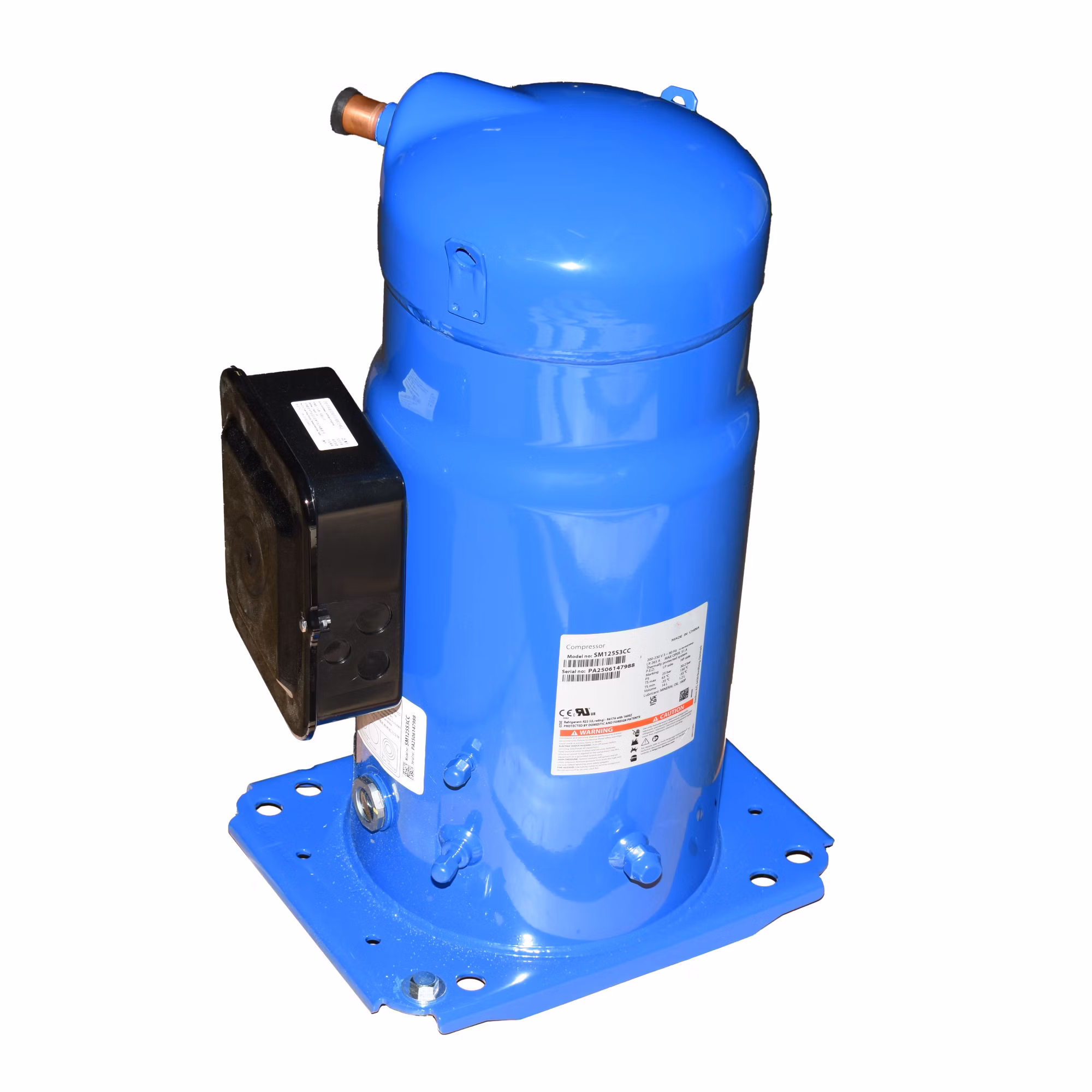

P040-12671 is a Danfoss branded Scroll Compressor that is three phase with a voltage of 460 VAC. The compressor is designed to work in units that are compatible with a BTU output of 126400 and use R-22 refrigerant.
Factory Authorized Parts are designed to meet exact Carrier® Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
| Attributes | |
|---|---|
| Amps | 17.9 |
| BTU Output | 126,400 |
| Brand | Danfoss |
| Compressor Housing | Hermetic |
| Compressor Type | Scroll |
| Condensing Temperature | 130°F (54.44°C) |
| Country of Origin | USA |
| Cubic Measurement | 10.5 |
| Cycle/Hertz | 50 Hz |
| Dimensional Weight | 133 |
| Discharge Connection Size OD | 7/8″ |
| Discharge Connection Type | Sweat or Braze |
| Displacement | 1024 (cu.ft/Hr), 1236 (cu.ft/Hr) |
| Evaporating Temperature | 45°F (7.22°C) |
| GTIN | 00662442702586 |
| Locked Rotor Amps (LRA) | 120 |
| Mounting Dimensions | 8.5″ x 12″ |
| OPT Code | pp040-12671 |
| Oil Charge Initial (oz.) | 124 |
| Oil Type | Mineral (MO) |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 17.9 |
| Refrigerant | R-22 |
| Sound Level (dBA) | 76-79 |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 1 3/8″ |
| UOM | EA |
| UPC | 662442702586 |
| Voltage | 460 VAC |
