Description

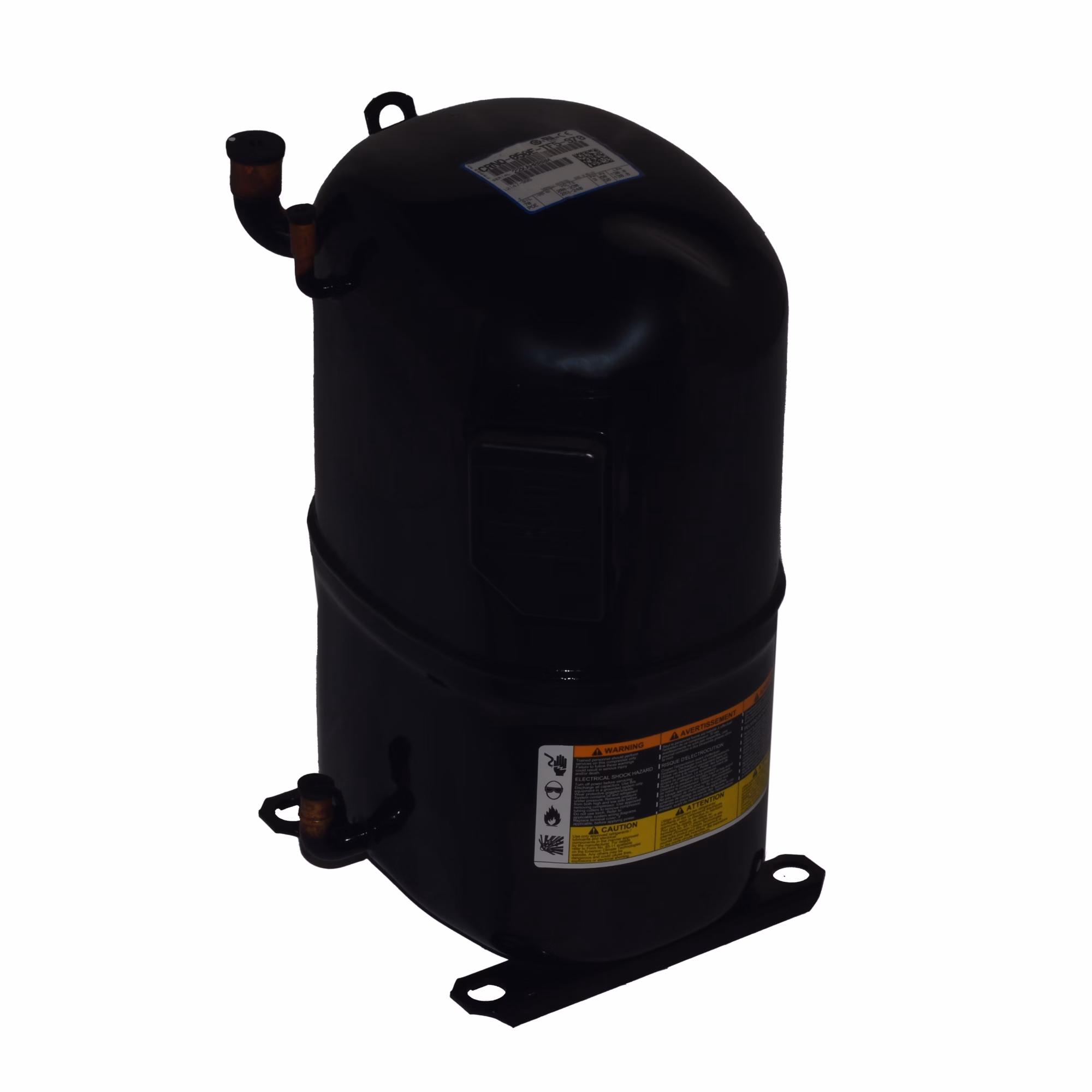

Factory Authorized Parts – CRNQ-050E-TF5-970 Copeland Compressor, 208/230V 3Ph, R22, 21.4 RLA, 61,500 Btu – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Factory Authorized Parts™ – CRNQ-050E-TF5-970 Reciprocating / Hermetic Compressor for R-22 Refrigerant
Factory Authorized Parts are designed to meet exact Carrier® Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
| Attributes | |
|---|---|
| Amps | 21.4 |
| Approvals | UL Listed |
| BTU Output | 61,500 |
| Brand | Copeland |
| Compressor Housing | Hermetic |
| Compressor Type | Reciprocating |
| Country of Origin | MEX |
| Cubic Measurement | 2.474 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 31 |
| Discharge Connection Size OD | 1/2″ |
| Evaporating Temperature | 45°F (7.22°C) |
| GTIN | 00822529608563 |
| Locked Rotor Amps (LRA) | 130 |
| Mass Flow (lbs/hr) | 900 lbs./hr.; 995 lbs./hr. |
| Mounting Dimensions | 7.5″ x 7.5″ x 16.5″ |
| Oil Charge Initial (oz.) | 70 |
| Oil Type | Polyolester (POE) |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 19.2, 21.4 |
| Refrigerant | R-22 |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 7/8″ |
| UOM | EA |
| UPC | 822529608563 |
| Voltage | 200/230 VAC |
