Description
Factory Authorized Parts – 06TTA356SS1C – Screw Compressor up to 200 HP – E:Mail: sales@walkair.us to confirm availability or for volume discounts

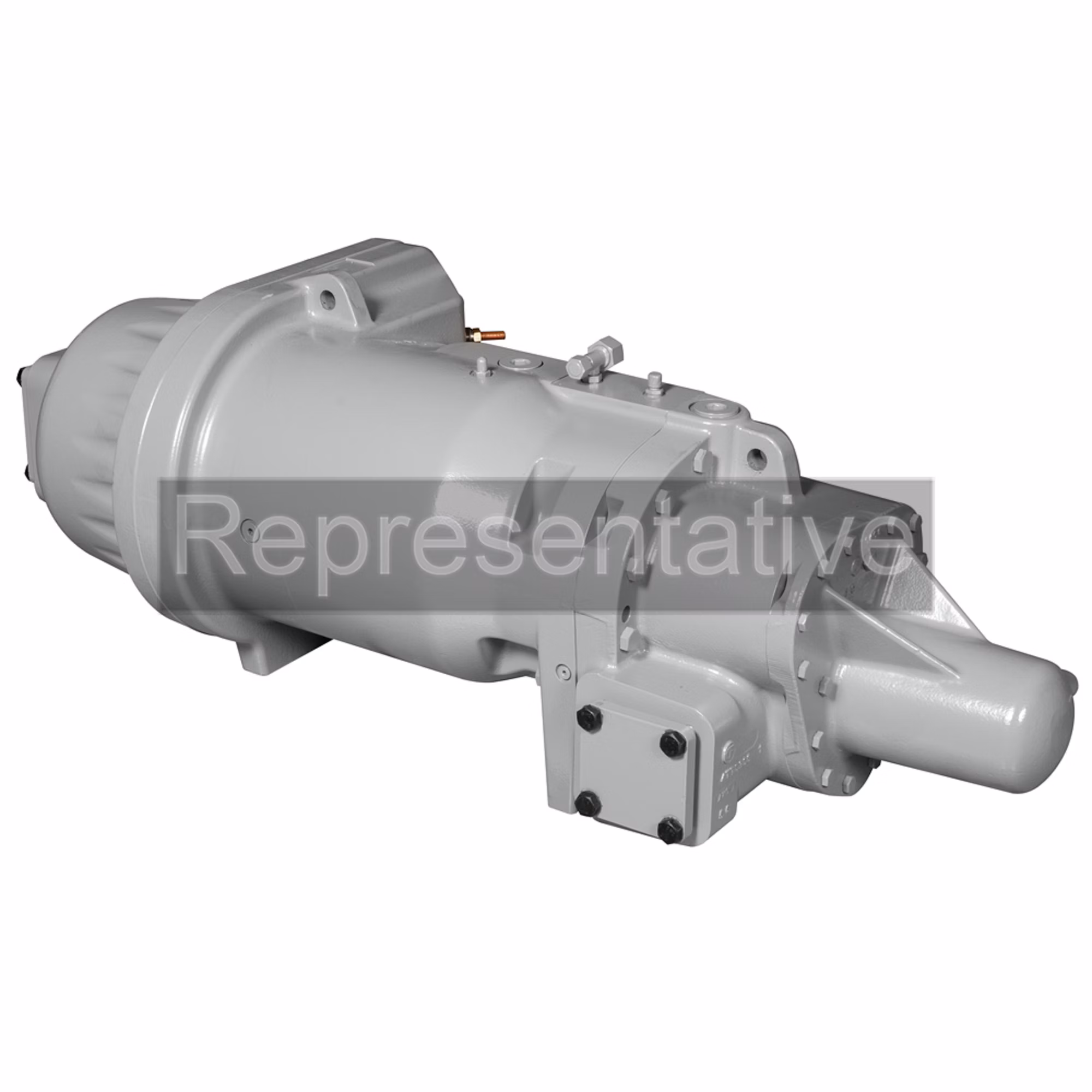

Factory Authorized Parts™ – 06TTA356SS1C – Screw Compressor up to 200 HP
Please note, this is a special order, non-stock item and will be shipped direct from the vendor. Non-stock and Special Order items cannot be cancelled once processed, and are non-returnable. Customer is responsible for freight charges. These items may have an extended lead time. Use chat if you need to confirm lead time before ordering. By purchasing this product, you agree to these terms.
| Attributes | |
|---|---|
| Brand | Carlyle |
| Compressor Housing | Semi-Hermetic |
| Compressor Type | Screw |
| Country of Origin | CHN |
| Cubic Measurement | 34.3125 |
| Cycle/Hertz | 50/60 Hz |
| Dimensional Weight | 681 |
| Discharge Connection Type | Sweat or Braze |
| Evaporating Temperature | -40°F to 10°F (-40°C to -12.22°C) |
| GTIN | 00781897894179 |
| Locked Rotor Amps (LRA) | 382, 1, 190, 1, 210, 388 |
| OPT Code | 06TTA356SS1C |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 226, 218 |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 4 1/8″ |
| UOM | EA |
| UPC | See Optical |
| Voltage | 400/460/690 VAC |
