Factory Authorized Parts – 06ET550360 Compressor High Temp – E:Mail: sales@walkair.us to confirm availability or for volume discounts

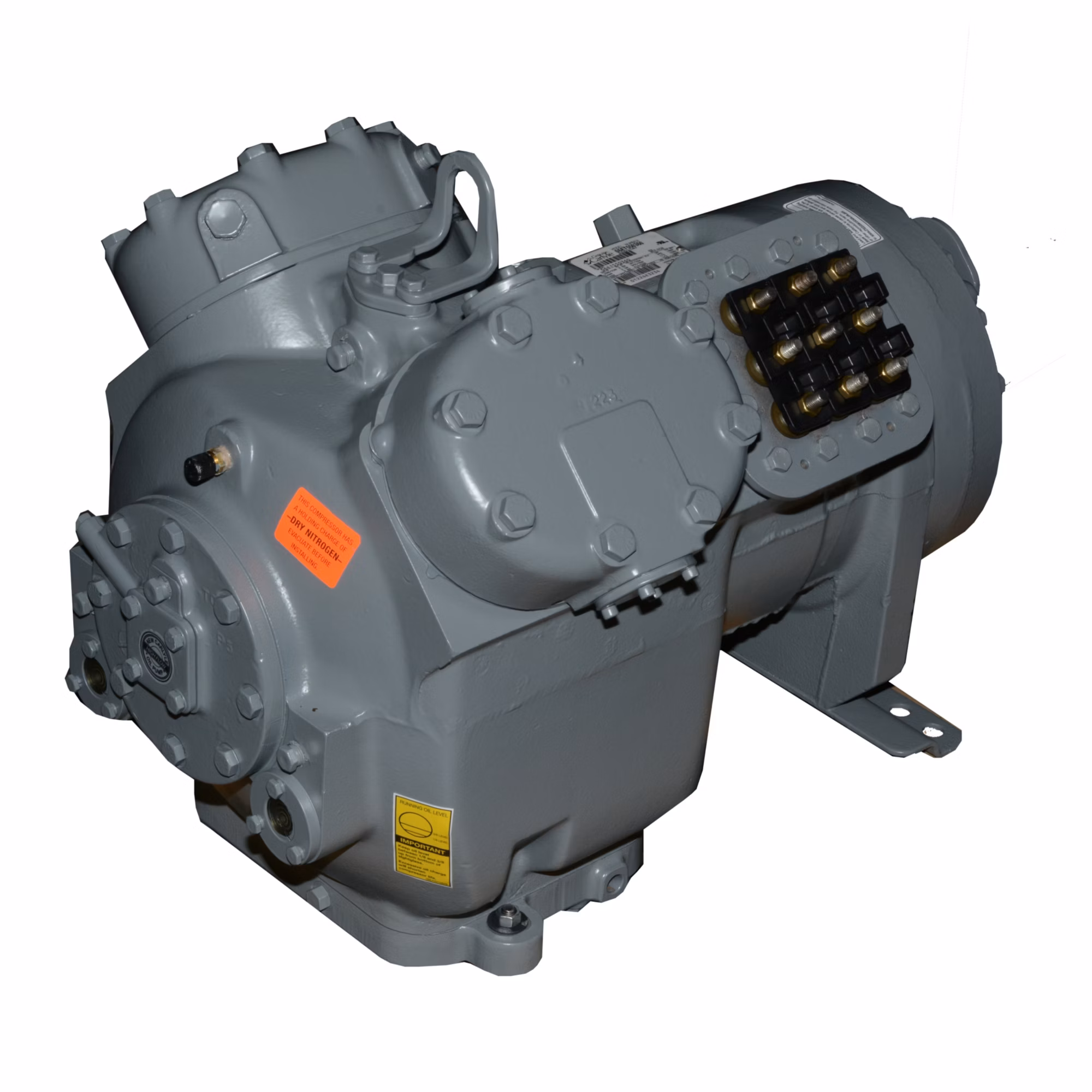

Factory Authorized Parts™ – 06ET550360 Compressor High Temp
| Attributes | |
|---|---|
| Approvals | UL Listed |
| Brand | Carlyle |
| CFM | 50 |
| Compressor Housing | Semi-Hermetic |
| Compressor Type | Screw |
| Country of Origin | USA |
| Cubic Measurement | 13.5276 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 166 |
| Discharge Connection Type | Sweat or Braze |
| Locked Rotor Amps (LRA) | 345, 173 |
| Mass Flow (lbs/hr) | 50 lbs./hr. |
| OPT Code | 06ET550360 |
| Oil Type | Alkylbenzene (AB) or Mineral (MO) or Polyolester (POE) |
| Overall Length | 31 |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 87, 44 |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Sweat or Braze |
| UOM | EA |
| UPC | See Optical |
| Voltage | 208-230/460 VAC |
