Description
Factory Authorized Parts – 06DS8186AC3250 Medium-High Temperature Compressor – E:Mail: sales@walkair.us to confirm availability or for volume discounts

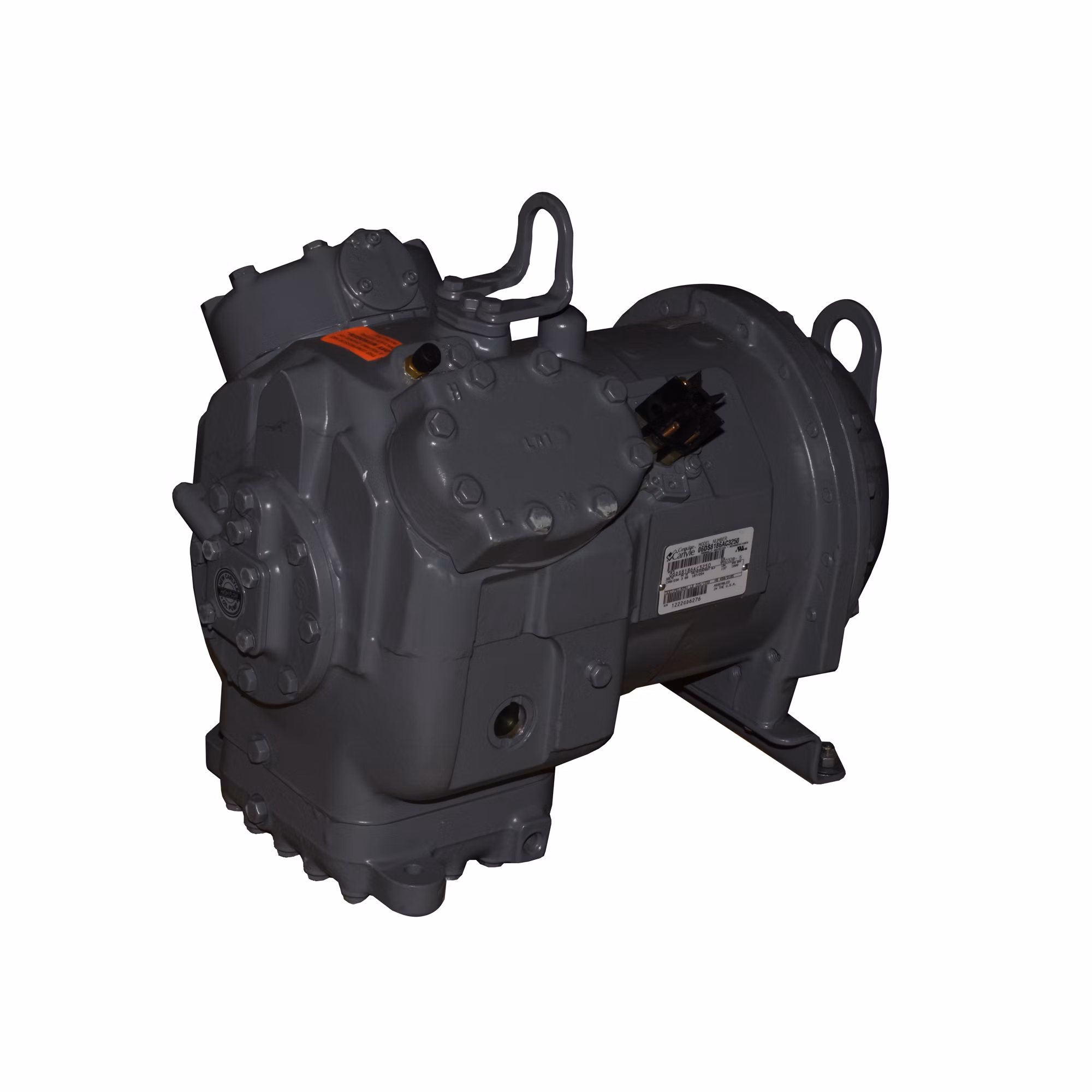

Factory Authorized Parts™ – 06DS8186AC3250 Medium-High Temperature Compressor
| Attributes | |
|---|---|
| Approvals | UL Listed |
| Brand | Carlyle |
| CFM | 18 |
| Compressor Housing | Semi-Hermetic |
| Compressor Type | Reciprocating |
| Country of Origin | USA |
| Cubic Measurement | 6.9213 |
| Cycle/Hertz | 60 Hz |
| Evaporating Temperature | 32°F to 53°F (0°C to 11.67°C) |
| GTIN | 00822529754888 |
| Locked Rotor Amps (LRA) | 160 |
| Motor HP | 6 1/2 |
| Mounting Dimensions | 8.25″ x 13.88″ |
| OPT Code | 06DS8186AC3250 |
| Oil Type | Alkylbenzene (AB) or Mineral (MO) or Polyolester (POE) |
| Overall Length | 24 |
| Phase | Three |
| Prop 65 | YES |
| Protection | Yes |
| Rated Load Amps (RLA) | 28.2 |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Sweat or Braze |
| UOM | EA |
| UPC | See Optical |
| Voltage | 208-230 VAC |
