Description
Factory Authorized Parts – 06DM8246AC0100 Compressor – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Compressor Core Credit applied Upon Return of Compressor Body. Core Credit Pricing Varies by Model.

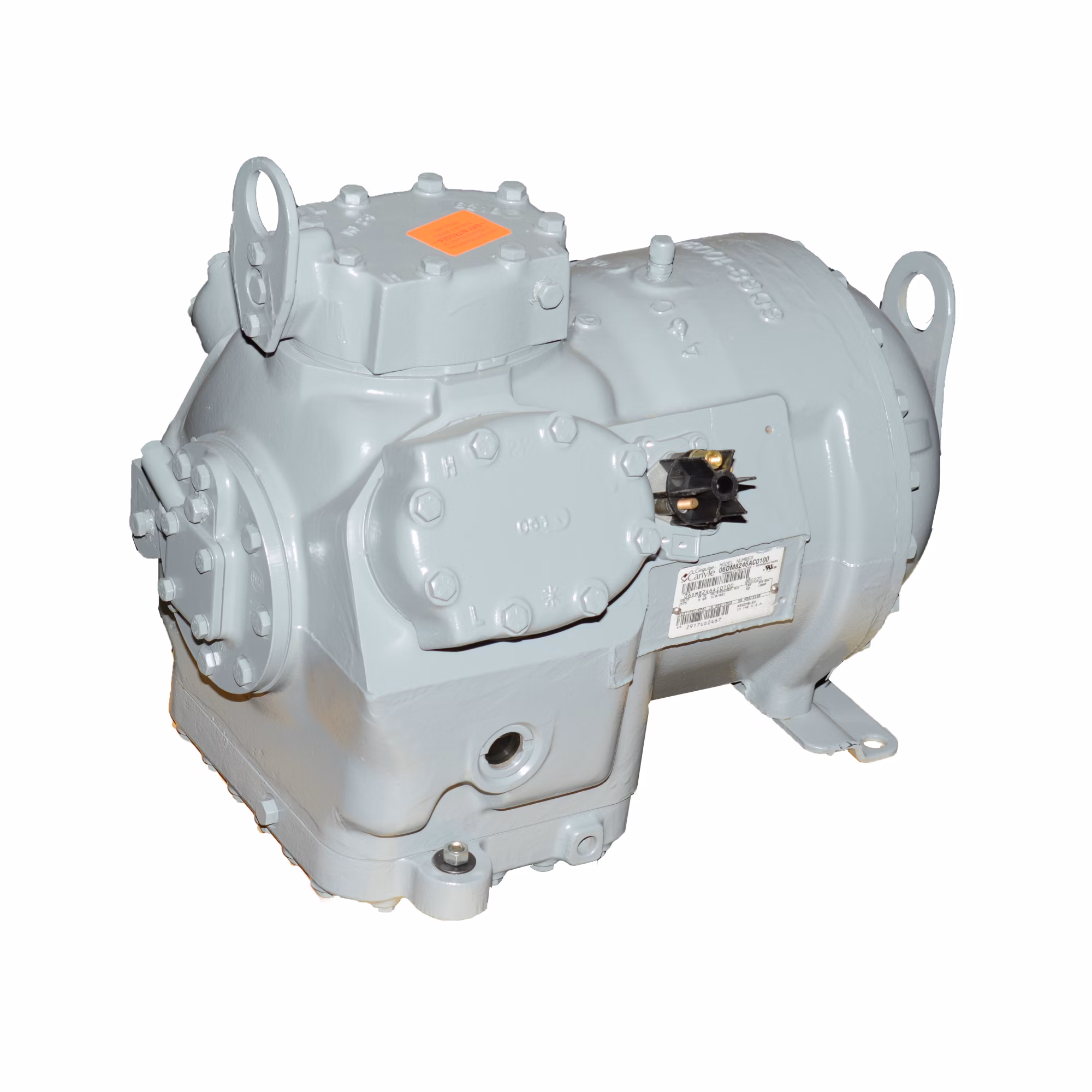

Factory Authorized Parts™ – 06DM8246AC0100 Compressor
High-flow, automatically reversible oil pump provides positive-displacement oil lubrication. Crankcase venting system equalizes pressure during startup and assures oil return to sump. Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts. Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency. High-efficiency valves provide increased refrigerant flow and lower pressure drops. Electronic oil-pressure switch.
| Attributes | |
|---|---|
| Approvals | CSA Listed; UL Listed |
| Brand | Carlyle |
| CFM | 24 |
| Compressor Housing | Semi-Hermetic |
| Compressor Type | Screw |
| Country of Origin | MEX |
| Cubic Measurement | 6.8547 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 87 |
| Discharge Connection Type | Sweat or Braze |
| Evaporating Temperature | 32°F to 53°F (0°C to 11.67°C) |
| Locked Rotor Amps (LRA) | 62 |
| Mass Flow (lbs/hr) | 24 lbs./hr. |
| Motor HP | 7 1/2 |
| Mounting Dimensions | 8 22/25″ – 11 19/50″ x 12 39/50″ |
| OPT Code | 1P06DM8246AC0100 |
| Oil Type | Alkylbenzene (AB) or Mineral (MO) or Polyolester (POE) |
| Overall Length | 24 |
| Overload Type | Thermal |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Refrigerant | R-22 |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Sweat or Braze |
| UOM | EA |
| UPC | See Optical |
| Voltage | 575 VAC |
