Description
Factory Authorized Parts – 06DM8187A03650 – Compressor Medium Temp – E:Mail: sales@walkair.us to confirm availability or for volume discounts

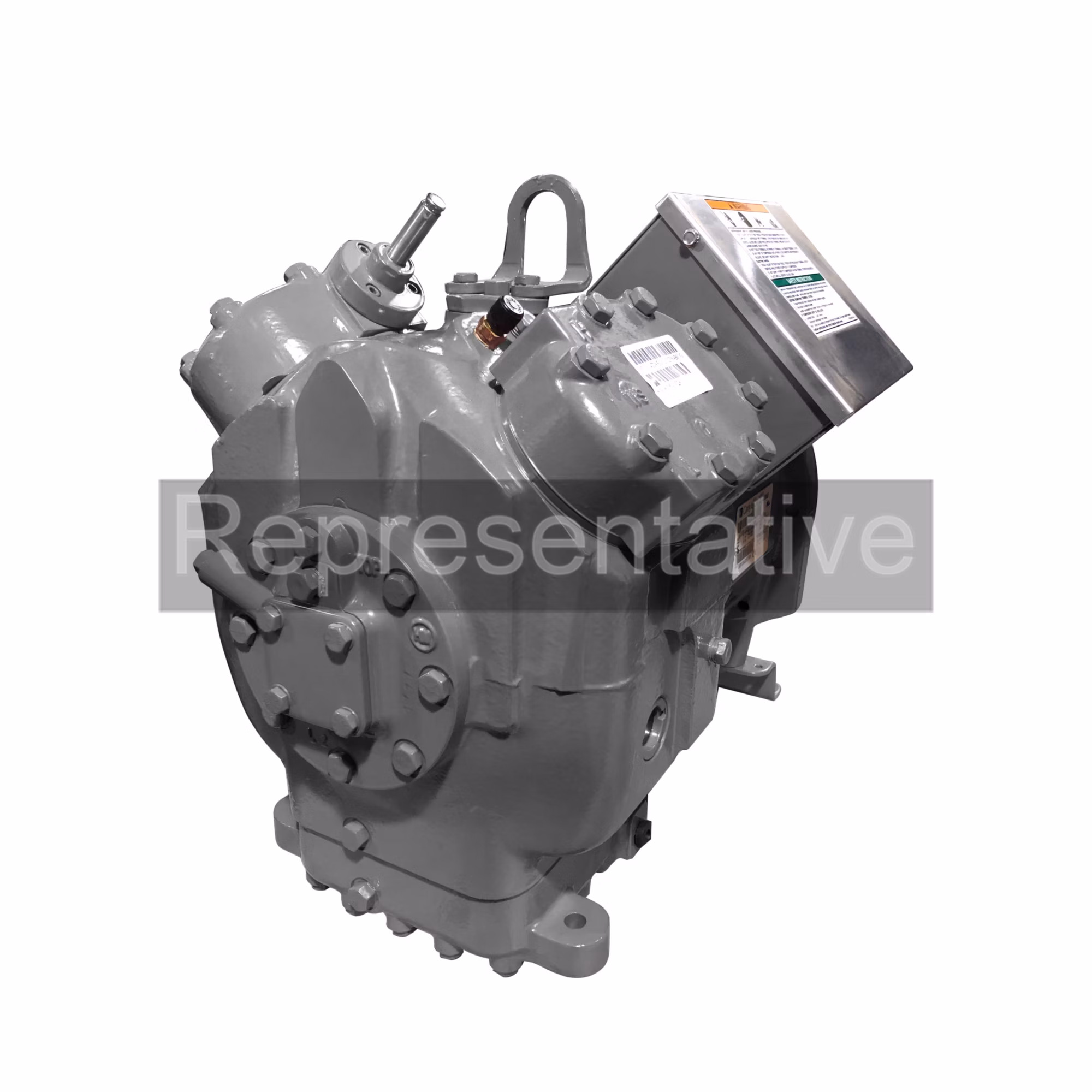

Factory Authorized Parts™ – 06DM8187A03650 – Compressor Medium Temp
High-flow, automatically reversible oil pump provides positive-displacement oil lubrication. Crankcase venting system equalizes pressure during startup and assures oil return to sump. Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts. Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency. High-efficiency valves provide increased refrigerant flow and lower pressure drops. Electronic oil-pressure switch.
Please note, this is a special order, non-stock item and will be shipped direct from the vendor. Non-stock and Special Order items cannot be cancelled once processed, and are non-returnable. Customer is responsible for freight charges. These items may have an extended lead time. Use chat if you need to confirm lead time before ordering. By purchasing this product, you agree to these terms.
| Attributes | |
|---|---|
| Approvals | CSA Listed; UL Listed |
| Brand | Carlyle |
| CFM | 18 |
| Compressor Housing | Semi-Hermetic |
| Compressor Type | Screw |
| Country of Origin | MEX |
| Cubic Measurement | 3.5417 |
| Cycle/Hertz | 60 Hz |
| Discharge Connection Type | Sweat or Braze |
| Evaporating Temperature | 32°F to 53°F (0°C to 11.67°C) |
| Motor HP | 6 1/2 |
| Mounting Dimensions | 8.25″ x 13.88″ |
| OPT Code | 06DM8187A03650 |
| Oil Type | Alkylbenzene (AB) or Mineral (MO) or Polyolester (POE) |
| Overall Length | 24 |
| Phase | Single |
| Prop 65 | NO |
| Protection | No |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Sweat or Braze |
| UOM | EA |
| UPC | See Optical |
| Voltage | 230 VAC |
