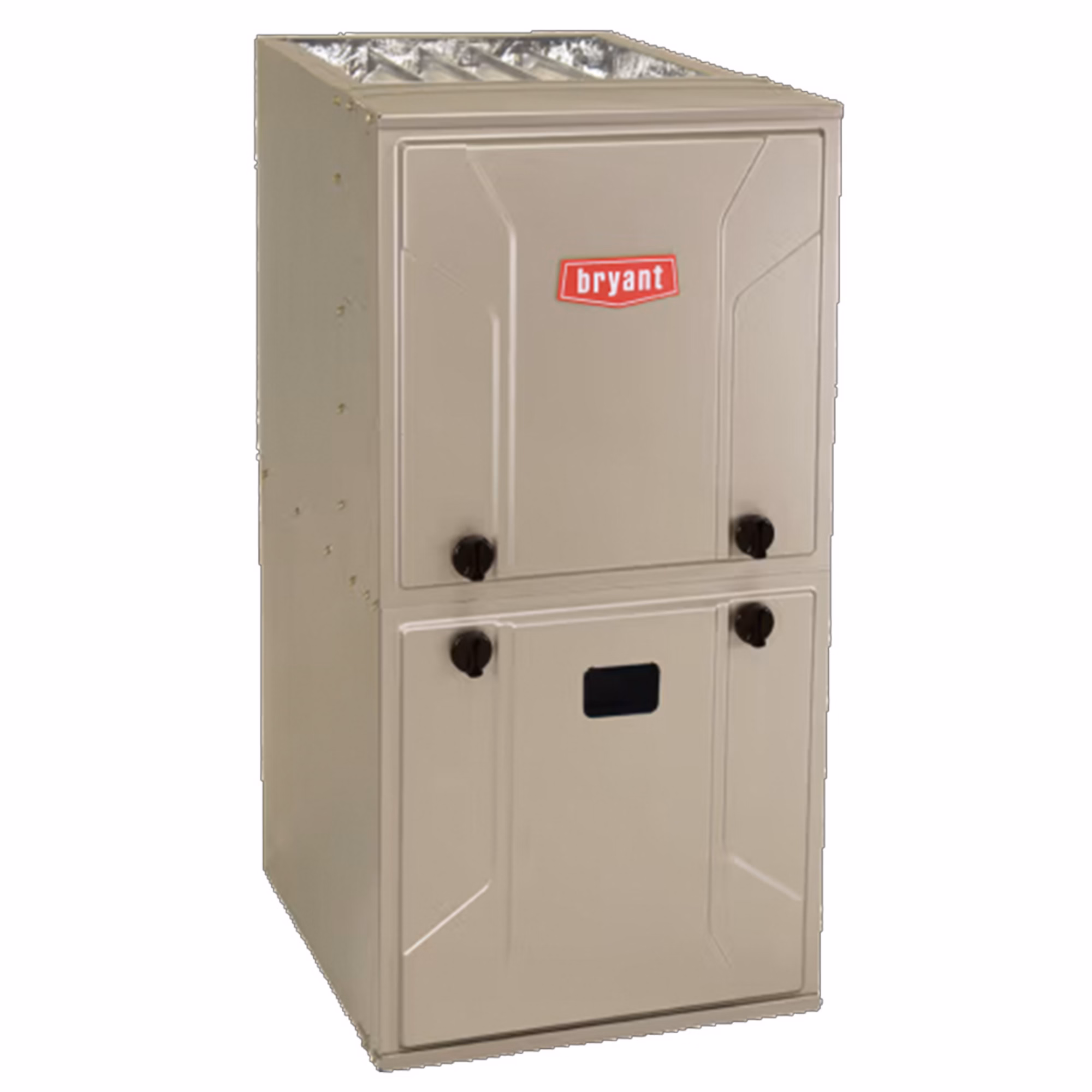

927TA48080V17 Bryant Preferred – Up to 97% AFUE 80000 BTUH 4-Way Multipoise, Two-Stage, Variable 25-Speed Gas Furnace – E:Mail: sales@walkair.us to confirm availability or for volume discounts
927TA48080V17
9 = 90+% / Heat Exchanger
2 = Preferred / Tier/NOx
T = Two Stage / Heating Stages
A = Major Series
48 = 1600 CFM / Cooling Capacity
080 = 80,000 BTU/H / Heat Input
V = Variable-Speed (VCT) PWM / Motor Type
17 = 17.5″ / Width
The 927TA Multipoise Preferred™ two-stage Condensing Gas Furnace features a variable 25-speed constant-torque ECM motor. The Perfect Heat® technology two-stage gas valve is at the heart of the comfort provided by this furnace, along with the variable-speed ECM blower motor, and two-speed inducer motor. With an Annual Fuel Utilization Efficiency (AFUE) up to 97% AFUE, the Preferred™ Series two-stage gas furnace provides exceptional savings as well when compared to standard gas furnaces. This Preferred™ Series Gas Furnace also features 4-way multipoise installation flexibility, and is available in six model sizes. The 927TA can be vented for direct vent/two-pipe, ventilated combustion air, or single-pipe applications. All sizes are design certified in Canada. This furnace is not designed for use in recreation vehicles, manufactured (mobile) homes or outdoors.
PERFORMANCE
- Variable 25-speed, constant-torque (VCT) ECM blower motor, two-speed inducer motor, and two-stage gas valve
- Fully-insulated casing including blower section
- Aluminized-steel primary heat exchanger
- Stainless-steel condensing secondary heat exchanger
- Silicon Nitride Perfect Heat™ Hot Surface Igniter
- Adjustable blower speed for heating, cooling, continuous fan, and dehumidification
- Perfect Heat Technology® intelligently stages low heat cycles to match indoor conditions
- Fan On Plus™ Technology allows adjustment to the constant fan speed from a compatible thermostat
INSTALLATION FLEXIBILITY
- 4-way multipoise design for upflow, downflow or horizontal installations, with unique vent elbow and optional throughthe-cabinet downflow venting capability
- On-board NFC antenna makes setup a tap away when using the Bryant service technician app
- Factory-configured ready for upflow applications
- Installation flexibility: sidewall or vertical vent
- Ideal height 35″ (889 mm) cabinet: short enough for taller coils, but still allows enough room for service
- Direct-vent/sealed combustion, single-pipe venting or ventilated combustion air
APPLICATIONS
- HYBRID HEAT® Dual Fuel Compatible
- Convertible to propane with gas conversion accessory kit
- Convenient Air Purifier and Humidifier connections
- Twinning capable with accessory kit
- 60080V21, 60100V21, and 60120V24 size allows 15 Amp breaker with accessory (order separately)
- SmartEvap™ technology prevents condensate that remains on the coil after a dehumidification cycle from re-humidifying throughout the home
CERTIFICATIONS
- All sizes meet ENERGY STAR® Version 4.1 criteria for gas furnaces: 95%+ AFUE
- Cabinet air leakage less than 2.0% at 1.0 in. w.c. and cabinet air
- leakage less than 1.4% at 0.5 in. w.c. when tested in accordance with
- ASHRAE standard 193
- All sizes can be installed in air quality management districts with a 40 ng/J NOx emissions requirement
LIMITED WARRANTY *
- Default 5-year parts limited warranty
- Default 20-year heat exchanger limited warranty
* 10-year parts and lifetime limited heat exchanger warranty with timely registration.
* Equipment must be registered within 90 days of originalinstallation, except in jurisdictions where warranty benefits cannot be conditioned on registration.
*Applies to original purchaser/homeowner and not available to subsequent oweners.See warranty certificate for complete details and restrictions, including warranty coverage of other applications.
This furnace is InteliSense capable when used with an ecobee for Bryant smart thermostat with InteliSense technology. InteliSense technology allows for the collection of performance data to be sent to the cloud. Utilizing Bryant’s digital tools, dealers can gather system settings and equipment data, with homeowner opt-in, to provide quicker and more efficient service.
| Attributes | |
|---|---|
| AFUE | 95-97 |
| Air Flow Direction | Multi-Position |
| Approvals | UL Listed |
| BTU Input | 80,000 |
| BTU Output | 50,000-77,000 |
| Blower Motor HP | 3/4 |
| Blower Motor RPM | 600-1,200 |
| Blower Motor Speeds | 25 (Twentyfive) |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Wheel Diameter | 11″ |
| Blower Wheel Width | 8″ |
| Brand | Bryant® |
| CFM | 255-1,625 |
| CFM Heating | 1,135-1,290 |
| Cabinet Width | 17.5 |
| Color | Taupe Metallic |
| Country of Origin | USA |
| Cycle/Hertz | 60 Hz |
| Energy Star Rated | Yes |
| FER Compliant | Yes |
| Fuel Type | Natural Gas |
| Full Load Amps | 9.2 |
| Furnace Type | Gas |
| Gas Connection Size | 1/2″ |
| Gas Connection Type | NPT |
| Ignition Type | Hot Surface (HSI) |
| Includes Filter Rack | No |
| Maximum Overcurrent Protection (MOCP) | 15 |
| Phase | Single |
| Product Family | 927T |
| Prop 65 | Yes |
| Stages Heating | (2) Two |
| Voltage | 110 VAC |
