Description

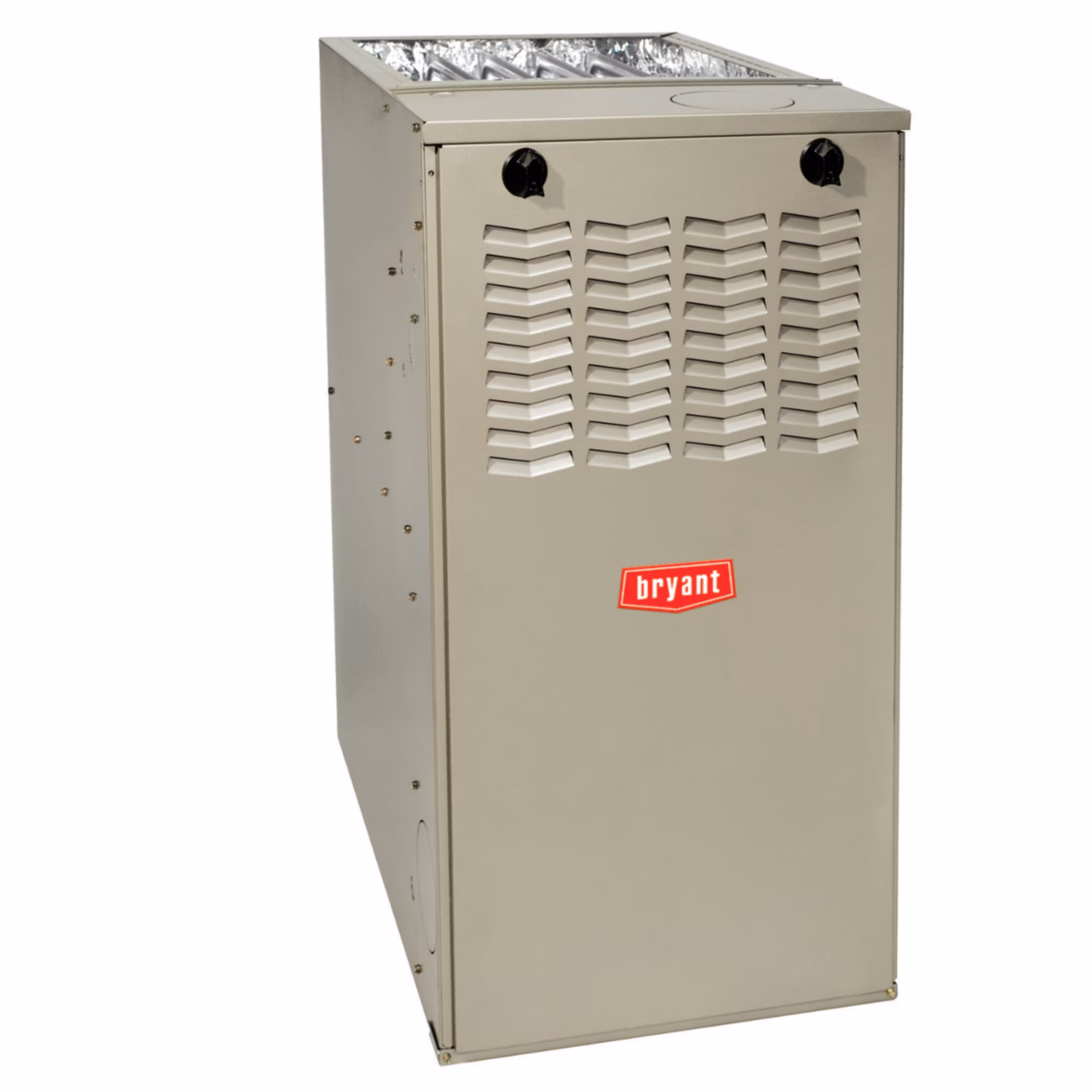

810SB36070M17 Bryant Legacy – 80% AFUE 70000 BTUH Multi-Speed ECM, Multipoise, Non-Condensing Gas Furnace – E:Mail: sales@walkair.us to confirm availability or for volume discounts
810SB36070M17
8 = 80% / Heat Exchanger
1 = Legacy Line / Tier/NOx
0 = 80% / AFUE/NOx
S = Single Stage / Heating Stages
B = Major Series
36 = 1200 CFM / Cooling Capacity (CFM)
070 = 70,000 BTU/h / Heat Input
M = Multi 18-Speed Constant Torque (MCT) ECM / Motor Type
17 = 17.5″ / Width
The 810SB/811SB Legacy™ Line 4-way Multipoise Gas Furnaces feature Bryant’s QuieTech™ noise reduction system for incredibly quiet induced draft operation. Applications are easy with 4-way multipoise design, through-the-furnace downflow venting, 13 different venting options, and designed for easy service access. An inner blower door is provided for tighter sealing in sensitive applications. Improved serviceability with the 3 digit status display and NFC enabled board allowing setup via the service tech app. The 810SB/811SB furnaces are approved for use with natural or propane gas, and the 811SB – Low NOx units are designed for California installations and can be installed in air quality management districts with a 40 ng/J NOx emissions limit.
PERFORMANCE
- Single Stage gas valve
- Multi 18-Speed, Constant Torque (MCT) ECM blower motor
- QuieTech™ noise reduction system
- Microprocessor based “smart” control center
- Adjustable heating air temperature rise
- Enhanced diagnostics with easy to read 3 digit display for faults and status
- Perfect Light™ Igniter
- Patented blocked vent safeguard designed to ensure proper furnace venting
- Inner door for tighter sealing
INSTALLATION FLEXIBILITY
- 4-way Multipoise furnace, 13 vent applications
- On-board NFC antenna makes setup a tap away when using the Bryant service technician app
- HYBRID HEAT® Dual Fuel System compatible
- All models are chimney friendly when used with accessory vent kit
- Select sizes approved for twinning, refer to accessory kit listing
APPLICATIONS
- Compact design – only 33-1/3 in. (847 mm) tall
- Propane convertible with gas conversion accessory
- Convenient Air Purifier and Humidifier connections
CERTIFICATION
- Cabinet air leakage less than 2.0% at 1.0 in. w.c. and cabinet air leakage less than 1.4% at 0.5 in. w.c. when tested in accordance with ASHRAE standard 193
- Residential installations eligible for consumer financing through the Retail Credit Program
| Attributes | |
|---|---|
| AFUE | 80 |
| Air Flow Direction | Multi-Position |
| BTU Input | 66,000 |
| BTU Output | 54,000 |
| Blower Motor HP | 1/3 |
| Blower Wheel Diameter | 8″ |
| Blower Wheel Width | 10″ |
| Brand | Bryant® |
| CFM | 1,200 |
| CFM Heating | 1,110 |
| Cabinet Width | 17.5 |
| Color | Gray |
| Country of Origin | USA |
| Cubic Measurement | 9.7653 |
| Cycle/Hertz | 60 Hz |
| Energy Star Rated | No |
| FER Compliant | No |
| Fuel Type | Natural Gas |
| Full Load Amps | 4.4 |
| Furnace Type | Gas |
| Gas Connection Size | 1/2 |
| Gas Connection Type | NPT |
| Ignition Type | Hot Surface (HSI) |
| Includes Filter Rack | No |
| Maximum Overcurrent Protection (MOCP) | 15 |
| Phase | Single |
| Product Family | 810S |
| Prop 65 | Yes |
| Stages Heating | (1) Single |
| UOM | EA |
| Voltage | 115 VAC |
