Description

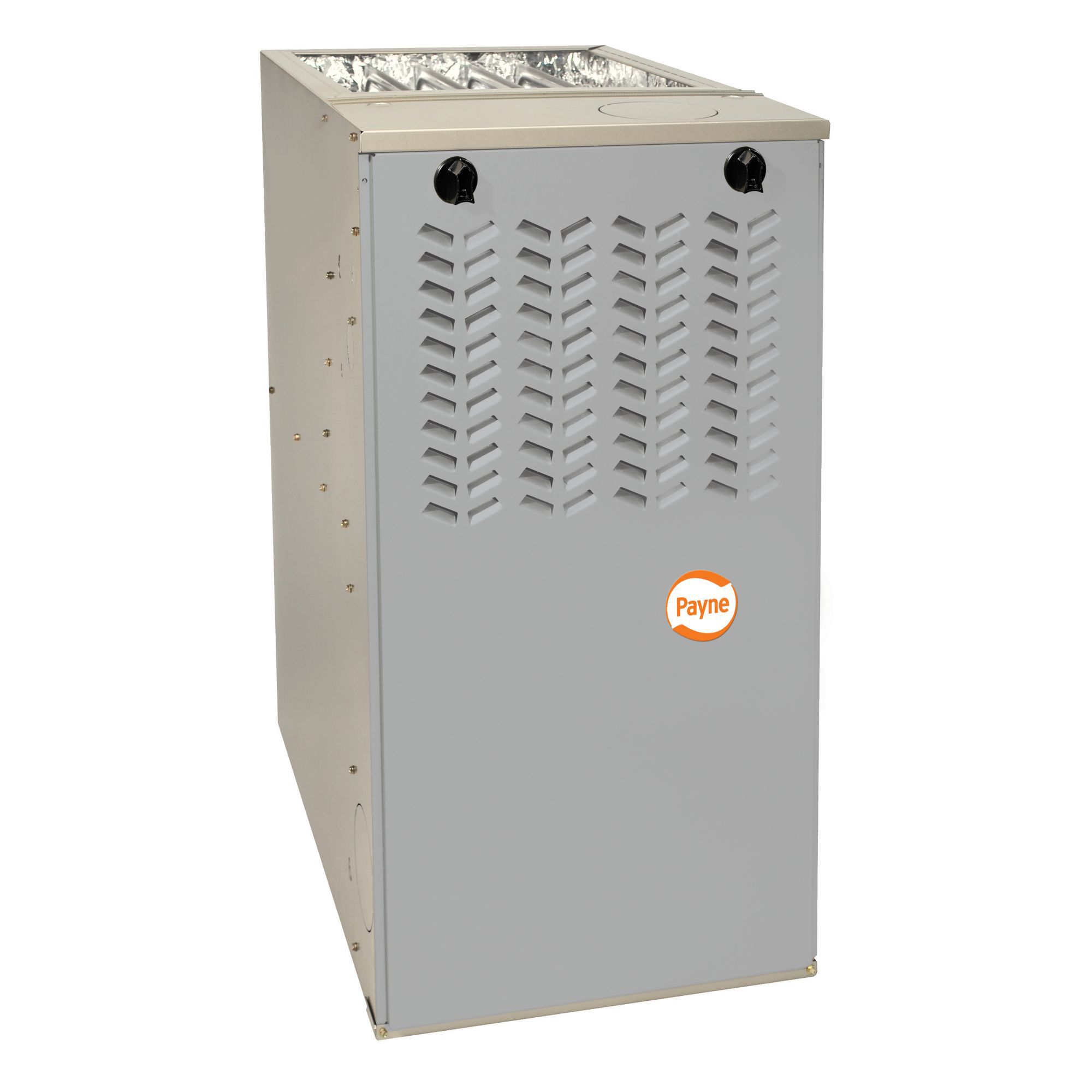

PG80MSAA60135D 80% AFUE 135000 BTUH Multi-Speed ECM Multipoise Gas Furnace – E:Mail: sales@walkair.us to confirm availability or for volume discounts
PG80MSAA60135D
P = Brand Identifier
G = Gas Furnace / Product
80 = 80% AFUE / Base Effinciency
M = Multi 18-Speed Constant Torque (MCT) ECM / Motor
S = Single Stage / Heating Stages
A = Standard / NOx Level
A = Major Series
60 = 2000 CFM / Cooling Capacity
135 = 135,000 BTU/h / Heating Input
D = 24.5″ / Width
The PG80MSA/PG80MSL applications are easy with 4-way multipoise design, through-the-furnace downflow venting, 13 different venting options, and designed for easy service access. An inner blower door is provided for tighter sealing in sensitive applications. Improved serviceability with the 3 digit status display and NFC enabled board allowing setup via the service tech app. The PG80MSA/PG80MSL furnaces are approved for use with natural or propane gas, and the PG80MSL-Low NOx units are designed for California installations and can be installed in air quality management districts with a 40 ng/J NOx emissions limit.
PERFORMANCE
- Single Stage gas valve
- Multi 18-Speed, constant torque (MCT) ECM blower motor
- Enhanced diagnostics with easy to read 3 digit display for faults and status
- Hot surface ignition
- Draft safeguard switch designed to ensure proper furnace venting
- Inner door for tighter sealing
INSTALLATION FLEXIBILITY
- 4-way Multipoise furnace, 13 vent applications
- On-board NFC antenna makes setup a tap away when using the service technician app
- Dual Fuel System compatible
- All models are chimney friendly when used with accessory vent kit
- Select sizes approved for twinning, refer to accessory kit listing
APPLICATIONS
- Compact design – only 33-1/3 in. (847 mm) tall
- Propane convertible with gas conversion accessory
CERTIFICATION
- Cabinet air leakage less than 2.0% at 1.0 in. w.c. and cabinet air leakage less than 1.4% at 0.5 in. w.c. when tested in accordance with ASHRAE standard 193
| Attributes | |
|---|---|
| AFUE | 80 |
| Air Flow Direction | Multi-Position |
| BTU Input | 63,000-66,000 |
| BTU Output | 51,000-54,000 |
| Blower Motor HP | 1/3 |
| Blower Motor Speeds | Multiple |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Wheel Diameter | 10″ |
| Blower Wheel Width | 8 |
| Brand | Payne® |
| CFM | 2,000 |
| CFM Heating | 1,805 |
| Cabinet Width | 17.5 |
| Color | Taupe |
| Country of Origin | USA |
| Cycle/Hertz | 60 Hz |
| Energy Star Rated | No |
| FER Compliant | Yes |
| Filter Size | 24″ x 25″ x 3/4 |
| Fuel Type | Natural Gas or LP |
| Full Load Amps | 8.8 |
| Furnace Type | Gas |
| Gas Connection Size | 1/2 |
| Gas Connection Type | NPT |
| Ignition Type | Hot Surface (HSI) |
| Includes Filter Rack | No |
| Maximum Overcurrent Protection (MOCP) | 15 |
| OPT Code | 1PPG80MSAA60135D |
| Phase | Single |
| Product Family | PG80MSA |
| Prop 65 | Yes |
| Rated Current Amps (RCA) | 14.4 |
| Stages Heating | (1) Single |
| UPC | See Optical |
| Voltage | 115 VAC |
