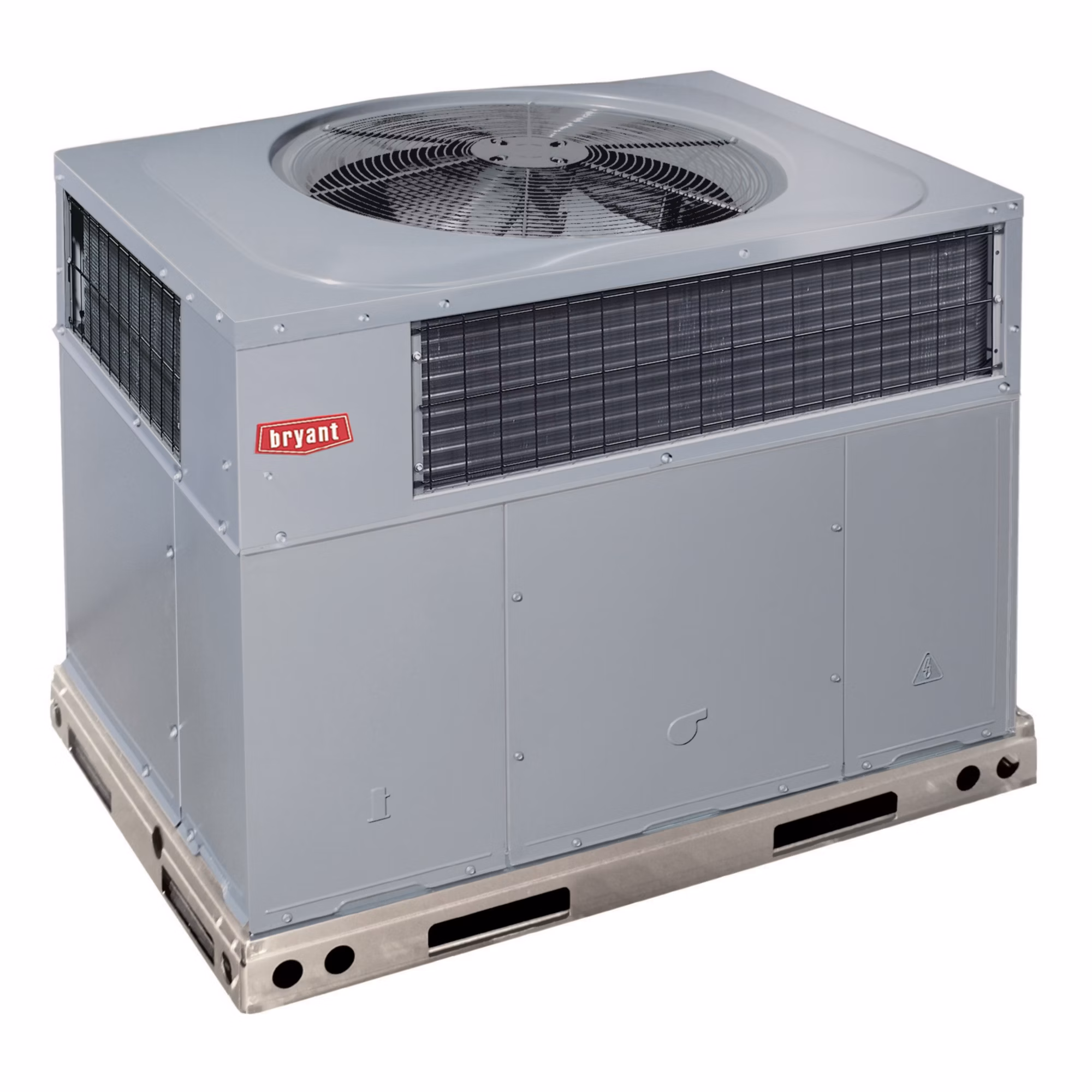

607CNXK48000–LW Bryant Legacy – 4 Ton Residential Packaged Heat Pump Unit R-410A (Low Cabinet Air Leakage) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
607CNXK48000–LW
607C = Single Packaged Heat Pump System / Type of Unit
N = 208/230-1-60 / Electrical Supply
X = N/A
K = Major Series
48 = 4 Tons / Nominal Cooling Capacity
000 = N/A / Heat Input Size (Btuh)
–LW = Low Cabinet Air Leakage
| Attributes | |
|---|---|
| Air Flow Direction | Convertible |
| Approvals | UL Listed |
| Blower Motor HP | 1 |
| Blower Motor Speeds | 5 (Five) |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Wheel Diameter | 11″ |
| Blower Wheel Width | 10″ |
| Brand | Bryant® |
| Bundled Price | false |
| CE – Sale Code | NO RETURNS:RED |
| CFM | 1,600 |
| COP | 2.3-3.7 |
| Color | Gray |
| Compressor Type | Scroll |
| Condenser Fan Blade Diameter | 26 |
| Condenser Fan CFM | 3500 |
| Condenser Fan Motor Qty | 1 |
| Condenser Motor HP | 1/5 |
| Condenser Motor RPM | 810 |
| Condenser Motor Speeds | 1 (Single) |
| Condenser Motor Type | PSC (Permanent Split Capacitor) |
| Cooling Capacity | 47,000 |
| Cooling Rated Capacity (Btu/h) | 48000 |
| Country of Origin | MEX |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| Drive Type | Direct |
| EER2 | 10.6 |
| ERP ID | 607CNXK48000–LW |
| Energy Star Rated | false |
| Equipment Type | Heat Pump |
| Evaporator Coil Metering Device | Orifice |
| HSPF2 | 6.7 |
| Heating Capacity | 46,000 |
| Locked Rotor Amps (LRA) | 130 |
| Maximum Overcurrent Protection (MOCP) | 50 |
| OPT Code | 1P607CNXK48000–LW |
| Phase | Single |
| Product Family | 607C |
| Prop 65 | true |
| Refrigerant | R-410A |
| Return Air Filter Size (RA) | (1) 24″ x 16″ x 1″; (1) 24″ x 18″ x 1″ |
| SEER2 | 13.4 |
| Solid Waste Tax | true |
| Sound Level (dBA) | 74 |
| Stages Cooling | (1) Single |
| Tier | Legacy™ |
| Tonnage | 4 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
