Description

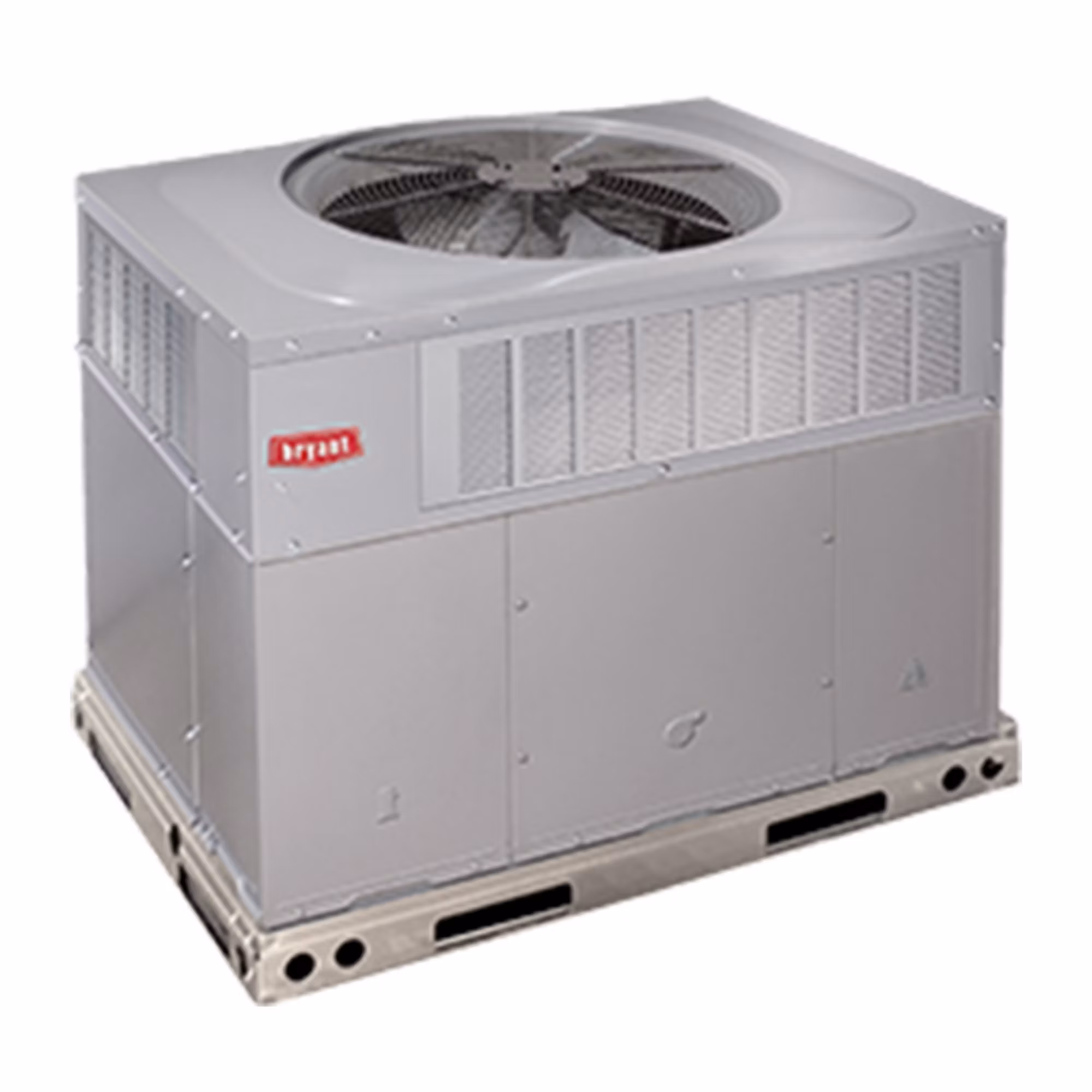

575CNWB24060 Bryant Legacy – 2 Ton 60,000 BTUH Residential Packaged Gas Heat & Electric Cool Unit (R-454B) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
575CNWB24060
575C = Single Packaged Air Conditioner and Gas Furnace System / Type of Unit
N = 208/230-1-60 / Electrical Supply
W = Natural Gas / Fuel and Controls
B = Major Series
24 = 2.0 Tons / Nominal Cooling Capacity
060 = 60,000 / Nominal Heat Input Size (Btuh)
Single-Packaged Products with Energy-Saving Features and R-454B Puron Advance™ refrigerant.
- 13.4 SEER2
- 11.05 EER2
- 81.0% AFUE
- ECM Motor-Standard
- Direct Spark Ignition
- Low Sound Levels
- Dehumidification Feature
- Dense Wire Condenser Coil Guard-Standard
- Cabinet air leakage of 2.0% or less at .5 in. W.C. when tested in accordance with ASHRAE standard 193.
- Refrigerant leak detection dissipation system for added safety
- Maximum allowed elevation is 10,000 ft (3,048m) above sea level
Features/Benefits
One-piece heating and cooling units with low sound levels, easy installation, low ma
| Attributes | |
|---|---|
| AFUE | 81 |
| Air Flow Direction | Downflow / Horizontal |
| Approvals | UL Listed |
| BTU Input | 60,000 |
| BTU Output | 49,000 |
| Blower Motor HP | 1/2 |
| Blower Motor RPM | 1,050 |
| Blower Motor Speeds | Multiple |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Wheel Diameter | 10″ |
| Blower Wheel Width | 10″ |
| Brand | Bryant® |
| CFM | 750 |
| Color | Gray |
| Compressor Type | Scroll |
| Condenser Coil Fins per Inch (FPI) | 21 |
| Condenser Coil Metering Device | Orifice |
| Condenser Fan Blade Diameter | 24 |
| Condenser Fan CFM | 2500 |
| Condenser Fan Motor Qty | 1 |
| Condenser Motor HP | 1/12 |
| Condenser Motor RPM | 810 |
| Condenser Motor Speeds | 1 |
| Condenser Motor Type | PSC (Permanent Split Capacitor) |
| Cooling Capacity | 23,200 |
| Cooling Rated Capacity (Btu/h) | 24000 |
| Country of Origin | MEX |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| Drive Type | Direct |
| EER2 | 11.05 |
| Energy Star Rated | NO |
| Evaporator Coil Fins per Inch (FPI) | 17 |
| Fuel Type | Natural Gas or LP |
| Gas Connection Size | 1/2″ |
| Gas Connection Type | NPT |
| Ignition Type | Direct Spark (DSI) |
| Locked Rotor Amps (LRA) | 9 |
| Maximum Overcurrent Protection (MOCP) | 20 |
| OPT Code | 1P575CNWB24060 |
| Phase | Single |
| Product Family | 575C |
| Prop 65 | YES |
| Refrigerant | R-454B |
| Return Air Filter Size (RA) | (2) 12″ x 20″ x 1″ |
| SEER2 | 13.4 |
| Sound Level (dBA) | 53-69 |
| Stages Cooling | 1 |
| Tier | Legacy™ |
| Tonnage | 2 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
