Description

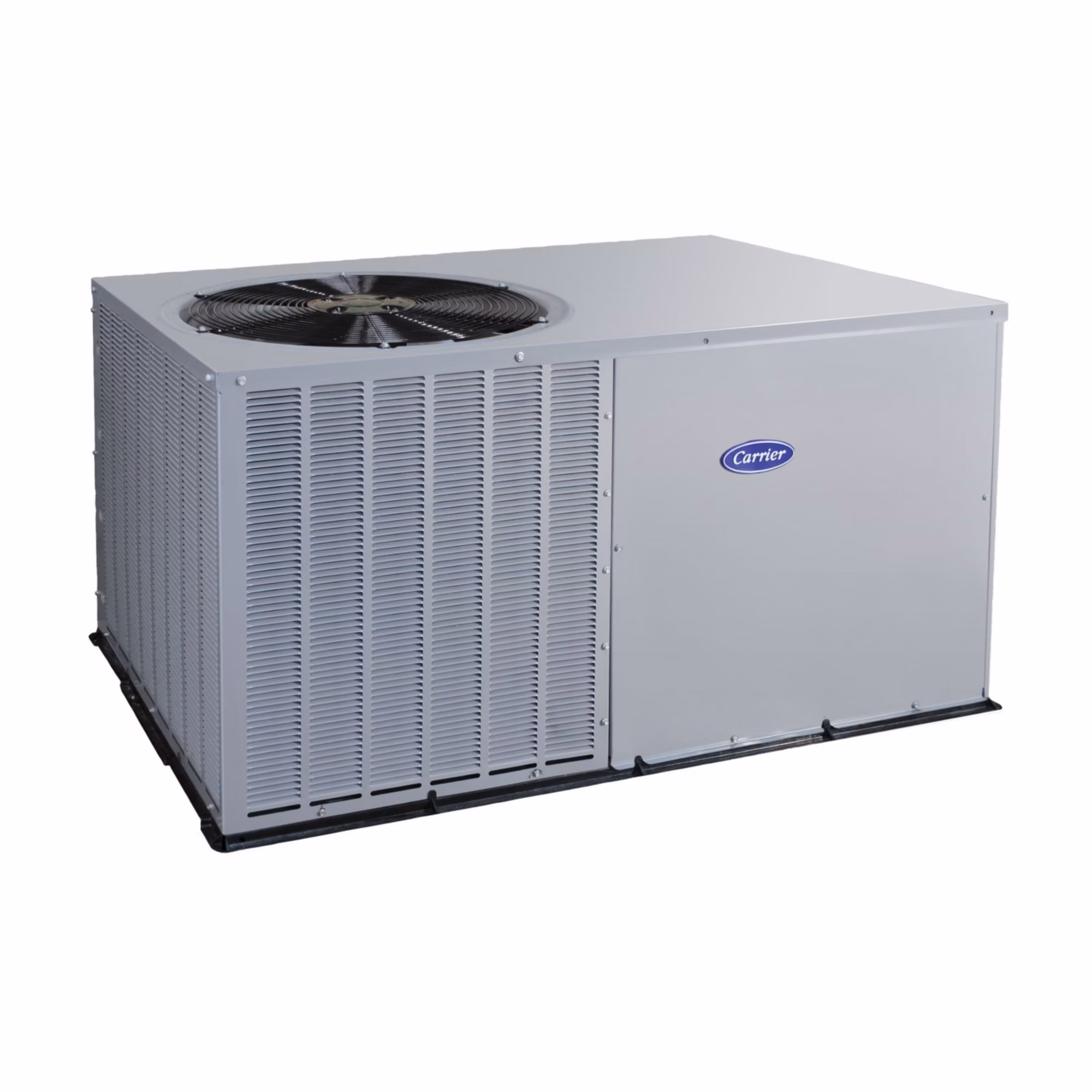

50ZHK024—3 Carrier – 2 Ton 13.4 SEER2 Residential Packaged Heat Pump Unit – E:Mail: sales@walkair.us to confirm availability or for volume discounts
50ZHK024—3
50ZH = Single Packaged Heat Pump System / Type of Unit
024 = 2.0 Tons / Nominal Cooling Capacity
— = N/A
3 = 208/230-1-60 / Electrical Supply
Single-Packaged Heat Pump Units with:
- Easy installation design
- Corrosion-proof unit base
- Class leading sound ratings
- Sloped drain for improved indoor air quality
- Scroll compressors
- Front and side service access
- Louvered panel coil protection
- Aluminum coil
- Cabinet air leakage less than 2.0% at 1.0 in. W.C. and cabinet air leakage less than 1.4% at 0.5 in W.C. when tested in accordance with ASHRAE standard 193
Features/Benefits
This unit is a packaged heat pump for manufactured housing, residential, and light commercial applications. Factory assembled package is a compact, horizontal supply and return unit, combining easy installation and maintenance with efficient performance.
EASY TO INSTALL – The units
| Attributes | |
|---|---|
| Air Flow Direction | Horizontal |
| Approvals | UL Listed |
| Blower Motor HP | 1/3 |
| Blower Motor Speeds | Multiple |
| Blower Motor Type | PSC (Permanent Split Capacitor) |
| Blower Wheel Diameter | 8″ |
| Blower Wheel Width | 11″ |
| Brand | Carrier® |
| CFM | 800 |
| COP | 2.3 |
| Color | Gray |
| Compressor Type | Scroll |
| Condenser Fan Blade Diameter | 20 |
| Condenser Fan CFM | 2000 |
| Condenser Fan Motor Qty | 1 |
| Condenser Motor HP | 1/8 |
| Condenser Motor RPM | 825 |
| Condenser Motor Speeds | Variable |
| Condenser Motor Type | PSC (Permanent Split Capacitor) |
| Cooling Capacity | 23,600-24,000 |
| Cooling Rated Capacity (Btu/h) | 24000 |
| Country of Origin | USA |
| Cubic Measurement | 28.4514 |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| Drive Type | Direct |
| EER | 11.5 |
| EER2 | 10.6 |
| Electric Heat Range [kW] | 3.8-10 |
| Energy Star Rated | NO |
| Evaporator Coil Metering Device | Piston |
| HSPF | 8 |
| HSPF2 | 6.7 |
| Heating Capacity | 24,000 |
| Locked Rotor Amps (LRA) | 61.6 |
| Maximum Overcurrent Protection (MOCP) | 70 |
| Phase | Single |
| Product Family | 50ZHK |
| Prop 65 | YES |
| Refrigerant | R-410A |
| Return Air Filter Size (RA) | 20″ x 20″ x 1″ |
| SEER | 14 |
| SEER2 | 13.4 |
| Sound Level (dBA) | 72 |
| Stages Cooling | 1 |
| Tier | Comfort™ |
| Tonnage | 2 |
| Voltage | 208-230 VAC |
